ACT MaXX Extreme Race D&S Clutch Kit | Integra GS-R/LS/RS, Civic Si/Del Sol VTEC (94-01) (AI4-XXG4)

ACT MaXX Extreme Race D&S Clutch Kit | Integra GS-R/LS/RS, Civic Si/Del Sol VTEC (94-01) (AI4-XXG4)

AI4-XXG4

In stock

$659.00 USD
$814.00 USD $659.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX Extreme Race D&S Clutch Kit is a high-performance clutch assembly designed for Honda and Acura models from 1994 to 2001, including the Integra GS-R, LS, RS, Civic Si, and Del Sol VTEC. This kit combines ACT's MaXX pressure plate with a ceramic 4-pad sprung race disc, engineered to deliver exceptional holding capacity and durability under demanding conditions. The MaXX pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch life. Each pressure plate undergoes a rigorous four-stage heat treatment process, ensuring consistent performance and resilience. The precision cover stampings provide added rigidity, contributing to smooth engagement and reliable power transfer during aggressive driving or racing scenarios. This setup is ideal for enthusiasts seeking a robust, race-ready clutch that maintains quality and longevity under high-stress conditions.

Designed as a direct replacement for compatible 1994-2001 Honda Civic Si, Del Sol VTEC, and Acura Integra models, this clutch kit is suitable for street, track, and performance applications. It fits vehicles equipped with the specified engines and chassis codes, providing a bolt-on upgrade that enhances clutch engagement and torque capacity. The kit includes the MaXX pressure plate and ceramic 4-pad sprung race disc, with no additional components required for installation. Its high clamp load and heat-treated construction make it suitable for high-horsepower builds and spirited driving. Whether used for daily driving or competitive racing, this clutch kit offers reliable performance and increased durability, ensuring optimal power transfer and longevity in demanding driving environments.

Overview

99-00 Honda Civic Si / 94-97 Del Sol VTEC & 94-01 Acura Integra MaXX Race Clutch Kit by ACT

This kit features ACT's MaXX pressure plate paired with their ceramic 4-pad sprung race disc.

ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Feel: Heavy to very heavy pedal effort, aggressive engagement, quick shifts, mild to moderate gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 485 ft/lbs
  • Torque Capacity (% Over OE): 162%

Applications

  • 1999 - 2000 Honda Civic Si
  • 1994 - 1997 Honda Civic Del Sol VTEC
  • 1998 - 2001 Honda CR-V EX/LX
  • 1994 - 2001 Acura Integra

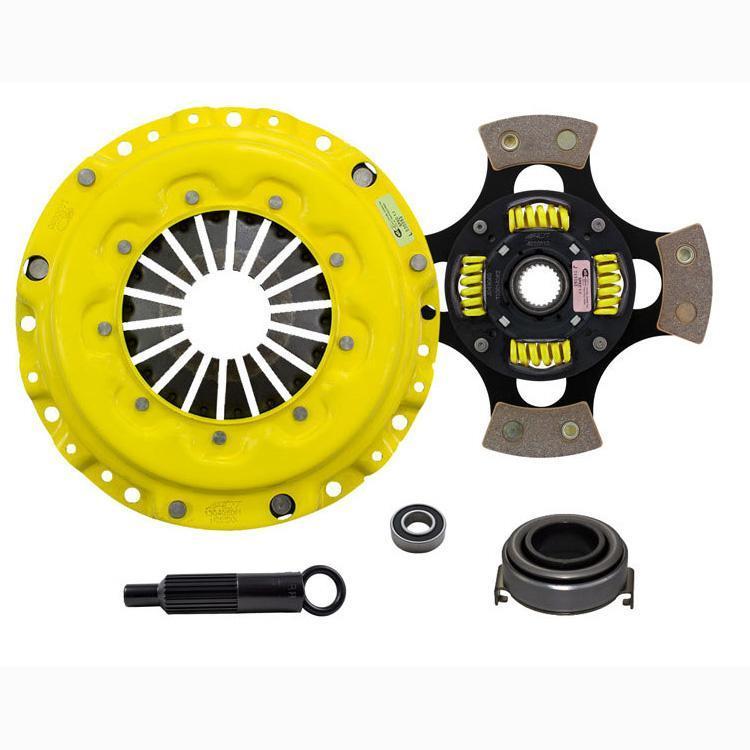

What's In The Box?

  • 1 - MaXX Pressure Plate
  • 1 - Sprung 4-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
