• ACT MaXX/Race Rigid 4 Pad Clutch Kit | Honda Civic (88) (HC7-XXR4)
1 1

ACT MaXX/Race Rigid 4 Pad Clutch Kit | Honda Civic (88) (HC7-XXR4)

ACT MaXX/Race Rigid 4 Pad Clutch Kit | Honda Civic (88) (HC7-XXR4)

HC7-XXR4

Out of stock

$536.00 USD
$662.00 USD $536.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Rigid 4 Pad Clutch Kit for Honda Civic (88) (HC7-XXR4) is a high-performance clutch assembly designed for serious driving enthusiasts. This kit features a MaXX pressure plate that employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes high-quality, ceramic friction material 4-pad rigid race discs, providing excellent grip and heat resistance. Constructed with precision cover stampings, the components deliver rigidity and stability during aggressive driving, making it ideal for track use or high-performance street applications.

Designed for the 1988 Honda Civic with compatible engine configurations, this clutch kit is a direct replacement upgrade for stock components. It is suitable for use in racing, spirited driving, or any scenario requiring increased clamping force and durability. The installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included for a straightforward upgrade. This kit enhances power transfer and pedal feel, providing reliable performance in demanding driving environments. It is an excellent choice for enthusiasts seeking a robust, race-ready clutch solution for their Civic.

Overview

ACT MaXX/Race Rigid 4 Pad Kit

HC7-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 9.8
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.73
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic

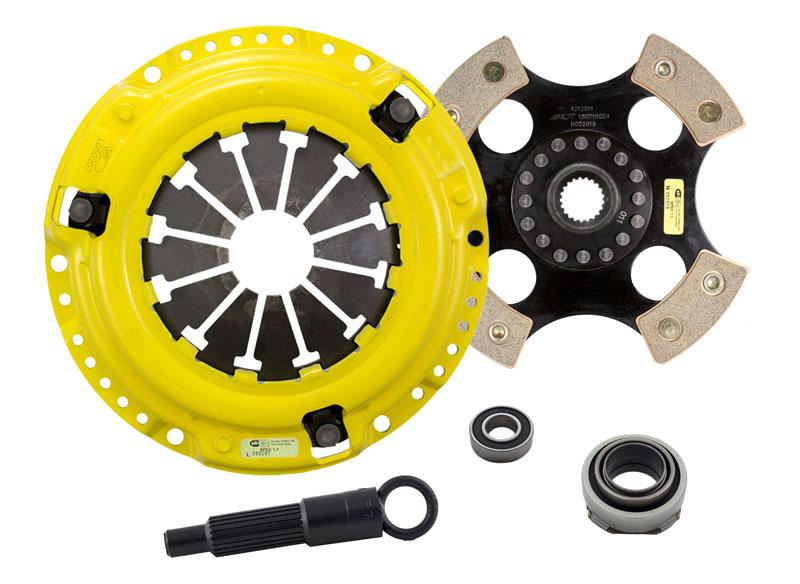

What's In The Box?

  • Clutch Friction Disc (4212011)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
