ACT MaXX/Race Rigid 4 Pad Clutch Kit | Honda Civic (90) (HC4-XXR4)

ACT MaXX/Race Rigid 4 Pad Clutch Kit | Honda Civic (90) (HC4-XXR4)

HC4-XXR4

In stock

$531.00 USD
$655.00 USD $531.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Rigid 4 Pad Clutch Kit for Honda Civic (90) is a high-performance clutch assembly designed for serious driving enthusiasts. It features a MaXX pressure plate with an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes a 4-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Precision cover stampings enhance the rigidity and consistency of the assembly, making it suitable for aggressive driving and racing applications.

This clutch kit is specifically designed for Honda Civic models from 1990, offering a direct bolt-on upgrade for enhanced performance. It is ideal for street, track, or competition use, delivering increased clamping force and durability. The kit is engineered to withstand high torque loads and aggressive shifts, making it suitable for modified or heavily driven vehicles. Installation is straightforward for experienced technicians, and the kit includes all necessary components for a complete upgrade. Compatible with stock or aftermarket flywheels, this clutch provides reliable engagement and long-lasting performance for demanding driving scenarios.

Overview

ACT MaXX/Race Rigid 4 Pad Kit

HC4-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 9.8
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.73
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda Civic
  • 1989-1991 Honda CRX

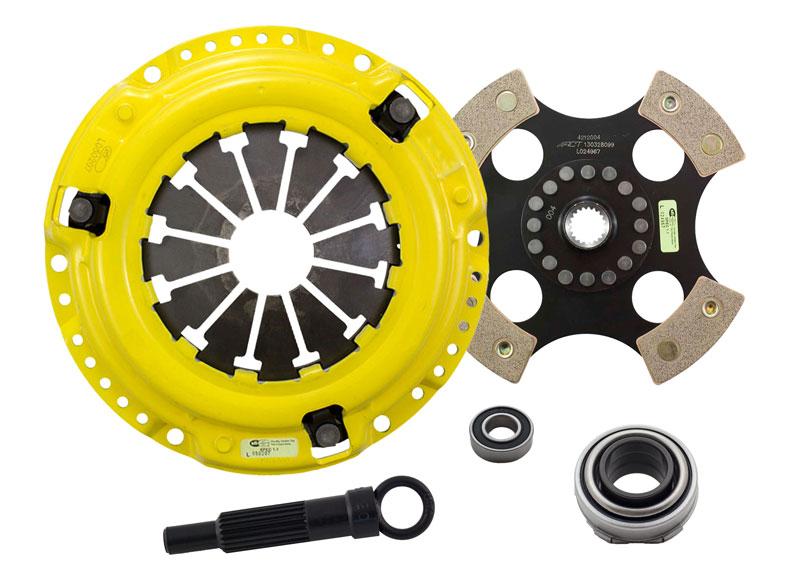

What's In The Box?

  • Clutch Friction Disc (4212004)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
