ACT MaXX/Race Rigid 4 Pad Clutch Kit | Honda Civic (92) (HC5-XXR4)

ACT MaXX/Race Rigid 4 Pad Clutch Kit | Honda Civic (92) (HC5-XXR4)

HC5-XXR4

In stock

$536.00 USD
$662.00 USD $536.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Rigid 4 Pad Clutch Kit for Honda Civic (92) is a high-performance clutch assembly designed for serious driving enthusiasts. It features a MaXX pressure plate with an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a rigorous four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes high-quality, ceramic friction material 4-pad rigid race discs, providing excellent grip and heat resistance. Constructed with precision cover stampings, the components deliver rigidity and stability, making this clutch kit ideal for aggressive street and track use.

This clutch kit is specifically engineered for the 1992 Honda Civic with compatible engine configurations. It serves as a direct replacement or upgrade for stock clutch systems, offering improved torque capacity and engagement characteristics. Installation involves bolt-on replacement of existing components, making it suitable for performance upgrades and racing applications. The kit typically includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete setup. Designed for high-performance driving, this clutch kit enhances power transfer and durability for street, track, or competition use on compatible Honda Civics from 1992.

Overview

ACT MaXX/Race Rigid 4 Pad Kit

HC5-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 9.8
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.56
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1997-2005 Acura EL
  • 1993-1997 Honda Civic del Sol
  • 1992-2005 Honda Civic

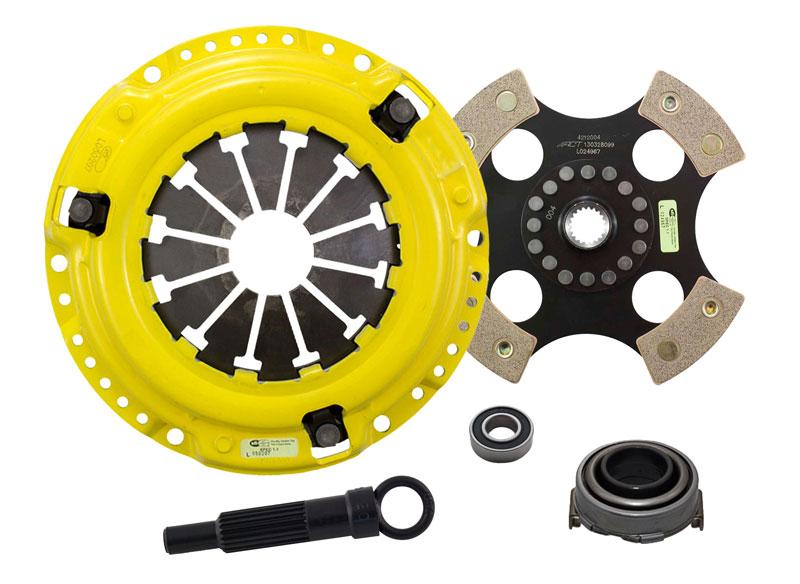

What's In The Box?

  • Clutch Friction Disc (4212004)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB820)

References

Warranty

  • Manufacturer 1 Year Warranty
