ACT MaXX/Race Rigid 4 Pad Clutch Kit | Honda Civic (1988) (HC6-XXR4)

ACT MaXX/Race Rigid 4 Pad Clutch Kit | Honda Civic (1988) (HC6-XXR4)

HC6-XXR4

Out of stock

$531.00 USD
$655.00 USD $531.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Rigid 4 Pad Clutch Kit for Honda Civic (1988) is a high-performance clutch upgrade designed for serious enthusiasts seeking enhanced durability and power transfer. This kit features ACT's MaXX pressure plate, which employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure maximum performance and reliability, while precision cover stampings provide added rigidity and consistency. The 4-pad rigid race disc utilizes high-quality ceramic friction materials, offering superior grip and heat resistance for demanding driving conditions. This combination delivers improved torque capacity and responsiveness, making it ideal for racing or high-performance street applications.

Designed specifically for the 1988 Honda Civic, this clutch kit is a direct replacement for stock components, providing a bolt-on upgrade that enhances overall drivetrain performance. It is suitable for use in street, track, or racing environments where durability and high heat tolerance are critical. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with the original clutch assembly, this kit is intended for vehicles with similar specifications and is recommended for drivers seeking increased performance and longevity in their clutch system.

Overview

ACT MaXX/Race Rigid 4 Pad Kit

HC6-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 9.8
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.73
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic
  • 1988-1988 Honda CRX

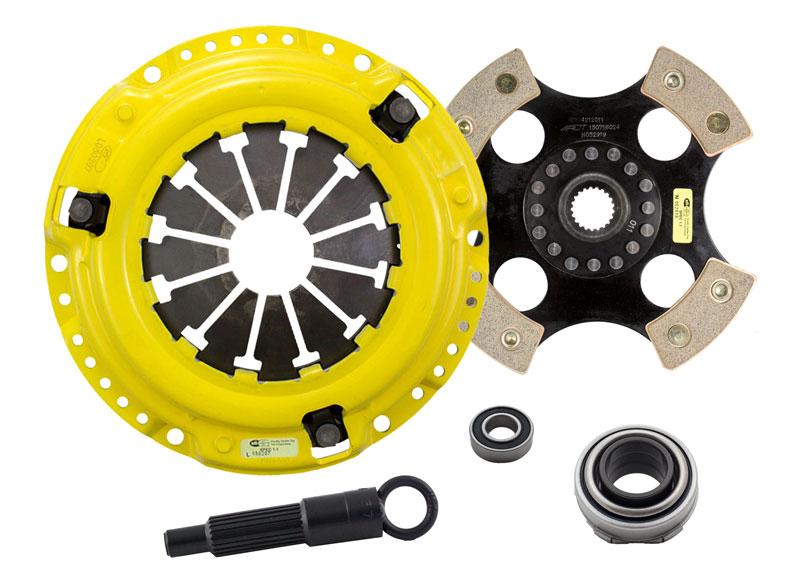

What's In The Box?

  • Clutch Friction Disc (4212011)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
