• ACT MaXX/Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XXG4)
1 1

ACT MaXX/Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XXG4)

ACT MaXX/Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XXG4)

Z65-XXG4

Out of stock

$650.00 USD
$803.00 USD $650.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 4 Pad Clutch Kit for the Mazda RX-7 (87-91) is a high-performance clutch assembly designed for serious driving enthusiasts. This kit features a MaXX pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under demanding conditions. The clutch disc incorporates a four-pad spring-centered race design, which effectively dampens torsional vibrations and enhances engagement smoothness. Built with precision cover stampings, the clutch assembly offers rigidity and reliability, making it suitable for high-stress applications and track use.

This clutch kit is specifically engineered for 1987-1991 Mazda RX-7 models, providing a direct upgrade for stock or worn clutch components. It is ideal for motorsport, spirited street driving, or any scenario requiring increased clamping force and durability. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Designed to withstand high heat and stress, this clutch assembly delivers improved power transfer, pedal feel, and longevity. It is compatible with the vehicle's original flywheel and requires no additional modifications for proper fitment and operation.

Overview

ACT MaXX/Race Sprung 4 Pad Kit

Z65-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes
  • Part Fitment Requirement: Flywheel requires counterweight (not included).
  • Product Weight (lbs.): 16.1
  • Torque Capacity (ft/lbs.): 625
  • Torque Capacity Over OE: 1.56
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240

Applications

  • 1987-1991 Mazda RX-7

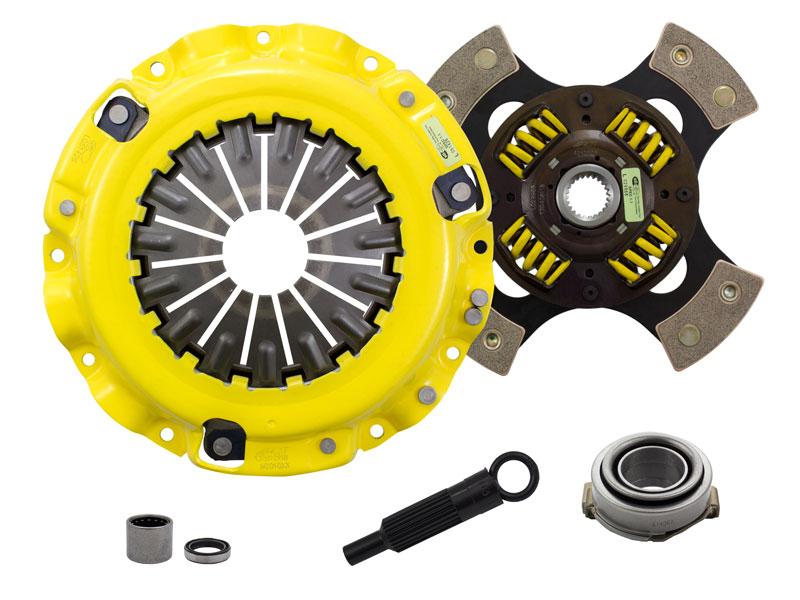

What's In The Box?

  • Clutch Friction Disc (4240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010XX)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
