• ACT MaXX/Race Sprung 4 Pad Clutch Kit | Honda Civic (1988) (HC7-XXG4)
1 1

ACT MaXX/Race Sprung 4 Pad Clutch Kit | Honda Civic (1988) (HC7-XXG4)

ACT MaXX/Race Sprung 4 Pad Clutch Kit | Honda Civic (1988) (HC7-XXG4)

HC7-XXG4

Out of stock

$576.00 USD
$711.00 USD $576.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 4 Pad Clutch Kit for Honda Civic (1988) is a high-performance clutch assembly designed for serious driving enthusiasts. It features a MaXX pressure plate that employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes a four-pad spring-centered race disc with spring-center construction, which effectively dampens torsional vibrations and enhances engagement smoothness. Constructed with precision cover stampings, this clutch kit delivers increased rigidity and reliability, making it suitable for high-stress applications and track use.

Designed specifically for the 1988 Honda Civic, this clutch kit is compatible with models equipped with the appropriate engine and chassis configurations. It serves as a direct replacement and performance upgrade for stock clutch components, providing improved holding capacity and responsiveness. The kit is ideal for street, track, or racing environments where durability and performance are critical. Installation involves bolt-on replacement of existing clutch parts, and the kit typically includes the pressure plate, clutch disc, and necessary hardware. This clutch kit is engineered to meet the demands of high-performance driving while maintaining reliability and longevity.

Overview

ACT MaXX/Race Sprung 4 Pad Kit

HC7-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 10.6
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.73
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic

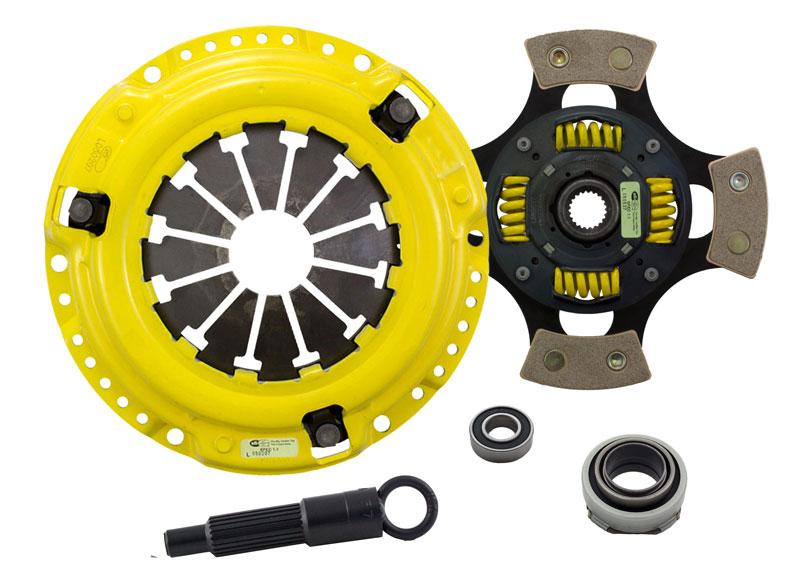

What's In The Box?

  • Clutch Friction Disc (4212111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
