• ACT MaXX/Race Sprung 4 Pad Clutch Kit | Acura Integra (90-91) (AI2-XXG4)
1 1

ACT MaXX/Race Sprung 4 Pad Clutch Kit | Acura Integra (90-91) (AI2-XXG4)

ACT MaXX/Race Sprung 4 Pad Clutch Kit | Acura Integra (90-91) (AI2-XXG4)

AI2-XXG4

Out of stock

$663.00 USD
$818.00 USD $663.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 4 Pad Clutch Kit for Acura Integra (90-91) is a high-performance clutch assembly designed for serious driving enthusiasts. It features a MaXX pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes a four-pad spring-centered race disc with spring-center construction, which effectively dampens torsional vibrations and enhances engagement stability. Constructed with precision cover stampings, this clutch kit offers increased rigidity and reliability, making it ideal for high-stress applications.

This clutch kit is specifically designed for 1990-1991 Acura Integra models, compatible with stock or upgraded engines within this chassis. It provides a direct replacement for the factory clutch, suitable for street and track use where increased holding capacity and durability are required. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included in the kit. This setup is optimal for performance driving, including racing and spirited street use, delivering improved power transfer and pedal feel. The ACT MaXX clutch kit ensures a reliable, high-performance upgrade for Acura Integra owners seeking enhanced clutch performance.

Overview

ACT MaXX/Race Sprung 4 Pad Kit

AI2-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.7
  • Torque Capacity (ft/lbs.): 485
  • Torque Capacity Over OE: 1.62
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1991 Acura Integra

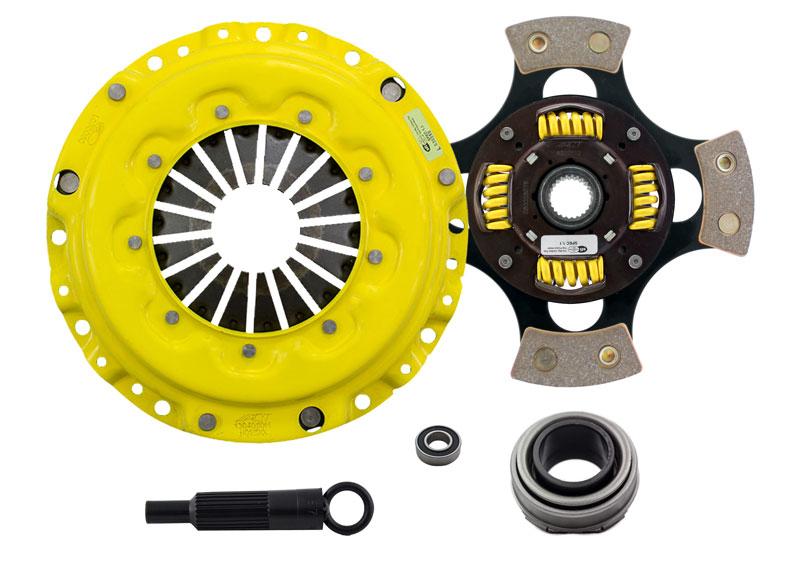

What's In The Box?

  • Clutch Friction Disc (4220112)
  • Clutch Alignment Tool (AT87)
  • Clutch Pressure Plate (H025XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)

References

Warranty

  • Manufacturer 1 Year Warranty
