ACT MaXX/Race Sprung 4 Pad Clutch Kit | Acura Integra (92-93) (AI3-XXG4)

ACT MaXX/Race Sprung 4 Pad Clutch Kit | Acura Integra (92-93) (AI3-XXG4)

AI3-XXG4

In stock

$663.00 USD
$818.00 USD $663.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 4 Pad Clutch Kit for the Acura Integra (92-93) is a high-performance clutch assembly designed for serious driving enthusiasts. Featuring ACT's MaXX pressure plate, this kit utilizes an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes a four-pad spring-centered race disc with spring-center construction, which effectively dampens torsional vibrations and enhances engagement smoothness. Built with precision cover stampings, the components deliver rigidity and reliability, making it suitable for aggressive street or track use.

This clutch kit is specifically engineered for 1992-1993 Acura Integra models, compatible with various engine configurations within that chassis. It provides a direct replacement for stock clutch components, offering increased holding capacity and improved heat dissipation for high-performance applications. The assembly is designed for bolt-on installation, ensuring straightforward setup without modifications. Ideal for racing, spirited street driving, or any scenario demanding maximum clutch performance, this ACT kit delivers enhanced durability and consistent power transfer. The kit includes all necessary components for a complete upgrade, ensuring optimal engagement and longevity.

Overview

ACT MaXX/Race Sprung 4 Pad Kit

AI3-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.7
  • Torque Capacity (ft/lbs.): 485
  • Torque Capacity Over OE: 1.62
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1992-1993 Acura Integra

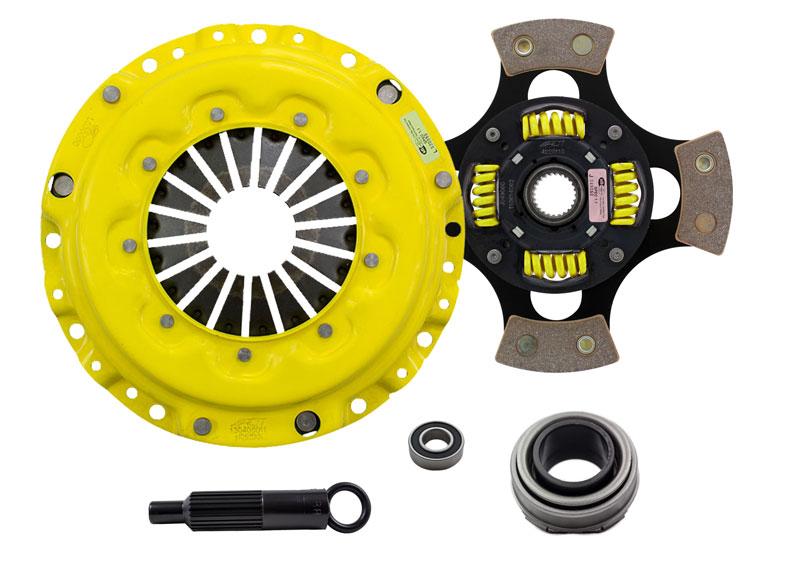

What's In The Box?

  • Clutch Friction Disc (4220110)
  • Clutch Alignment Tool (AT88)
  • Clutch Pressure Plate (H025XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)

References

Warranty

  • Manufacturer 1 Year Warranty
