• ACT MaXX Extreme Race Sprung 4 Pad Clutch Kit | Honda Civic MaXX/Race (90) (HC4-XXG4)
1 1

ACT MaXX Extreme Race Sprung 4 Pad Clutch Kit | Honda Civic MaXX/Race (90) (HC4-XXG4)

ACT MaXX Extreme Race Sprung 4 Pad Clutch Kit | Honda Civic MaXX/Race (90) (HC4-XXG4)

HC4-XXG4

In stock

$570.00 USD
$704.00 USD $570.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX Extreme Race Sprung 4 Pad Clutch Kit is a high-performance clutch system designed for serious driving enthusiasts. It features ACT's MaXX pressure plate, which employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The kit includes a four-pad spring-centered race disc with spring-center construction that effectively dampens torsional vibrations, ensuring smooth engagement and durability under demanding conditions. All components undergo a four-stage heat-treating process, providing unparalleled strength and reliability. Precision cover stampings enhance rigidity and consistency, making this clutch kit ideal for high-stress applications. Its robust construction delivers increased performance, improved heat resistance, and longer service life for competitive or spirited street driving.

This clutch kit is specifically designed for Honda Civic models from 1990, equipped with compatible engines and chassis configurations. It serves as a direct replacement upgrade for stock clutch systems, offering enhanced holding capacity and engagement characteristics suitable for racing, track days, or aggressive street use. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included in the kit. The ACT MaXX Extreme Race Sprung 4 Pad Clutch Kit is engineered to maximize performance and durability in high-performance driving scenarios, making it an excellent choice for enthusiasts seeking reliable, race-ready clutch performance.

Overview

ACT MaXX/Race Sprung 4 Pad Kit

HC4-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.6
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.73
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda Civic
  • 1989-1991 Honda CRX

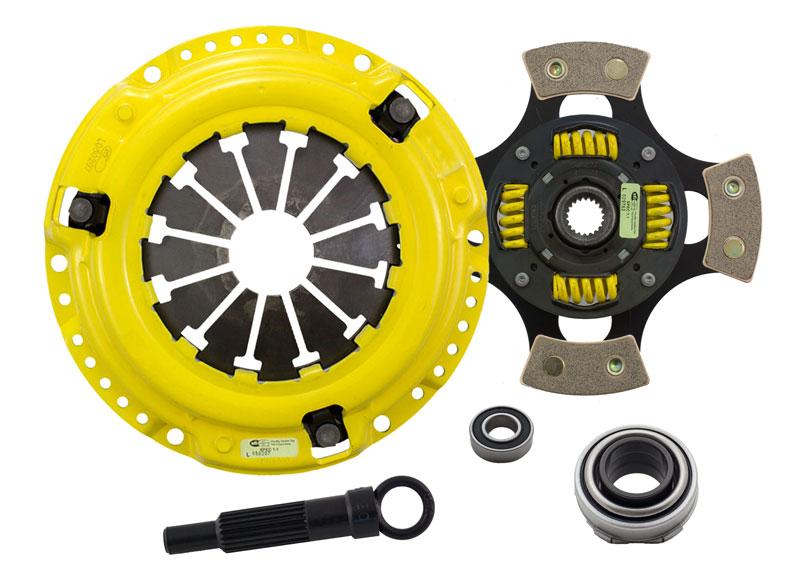

What's In The Box?

  • Clutch Friction Disc (4212104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
