• ACT MaXX Extreme Race Sprung 4 Pad Clutch Kit | Honda Civic (92) (HC5-XXG4)
1 1

ACT MaXX Extreme Race Sprung 4 Pad Clutch Kit | Honda Civic (92) (HC5-XXG4)

ACT MaXX Extreme Race Sprung 4 Pad Clutch Kit | Honda Civic (92) (HC5-XXG4)

HC5-XXG4

In stock

$576.00 USD
$711.00 USD $576.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX Extreme Race Sprung 4 Pad Clutch Kit for Honda Civic (92) is a high-performance clutch system designed for serious driving enthusiasts. This kit features ACT's MaXX pressure plate, which employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The 4-pad spring-centered race disc is engineered to damp torsional vibrations effectively, providing smooth engagement and reliable power transfer. Constructed with precision cover stampings for added rigidity, this clutch kit delivers enhanced holding capacity and responsiveness, making it ideal for track use or high-performance street driving.

Designed for the Honda Civic (92), specifically the HC5 chassis, this clutch kit is suitable for models equipped with compatible engines and transmission setups. It serves as a direct replacement or upgrade for stock clutch components, offering increased clamping force and durability for aggressive driving. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Suitable for street, track, or racing applications, this clutch kit provides a reliable solution for drivers seeking improved performance and longevity in demanding conditions. Proper fitment and installation are recommended for optimal results.

Overview

ACT MaXX/Race Sprung 4 Pad Kit

HC5-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.6
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.56
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1997-2005 Acura EL
  • 1992-2005 Honda Civic
  • 1993-1997 Honda Civic del Sol

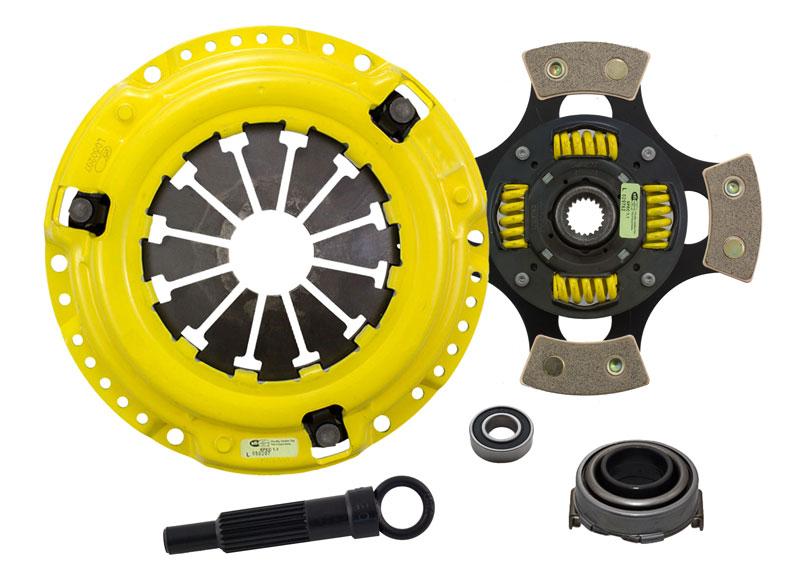

What's In The Box?

  • Clutch Friction Disc (4212104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB820)

References

Warranty

  • Manufacturer 1 Year Warranty
