ACT MaXX/Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC6-XXG4)

ACT MaXX/Race Sprung 4 Pad Clutch Kit | Multiple Fitments (HC6-XXG4)

HC6-XXG4

Out of stock

$570.00 USD
$704.00 USD $570.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 4 Pad Clutch Kit HC6-XXG4 is a high-performance clutch system designed for serious driving enthusiasts. It features a MaXX pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes a four-pad spring-centered race disc with spring-center construction, which effectively dampens torsional vibrations and enhances engagement smoothness. Constructed with precision cover stampings, this clutch assembly offers increased rigidity and reliability, making it suitable for high-stress applications.

This clutch kit is compatible with multiple vehicle fitments, suitable for use in various makes and models requiring enhanced performance. It is ideal for track days, spirited street driving, or any scenario demanding increased clamping force and durability. Designed as a direct replacement or upgrade, the kit provides a bolt-on installation with all necessary components included. Its robust construction and advanced design make it an excellent choice for drivers seeking improved power transfer, longevity, and consistent engagement in performance-oriented vehicles.

Overview

ACT MaXX/Race Sprung 4 Pad Kit

HC6-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 10.6
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.73
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic
  • 1988-1988 Honda CRX

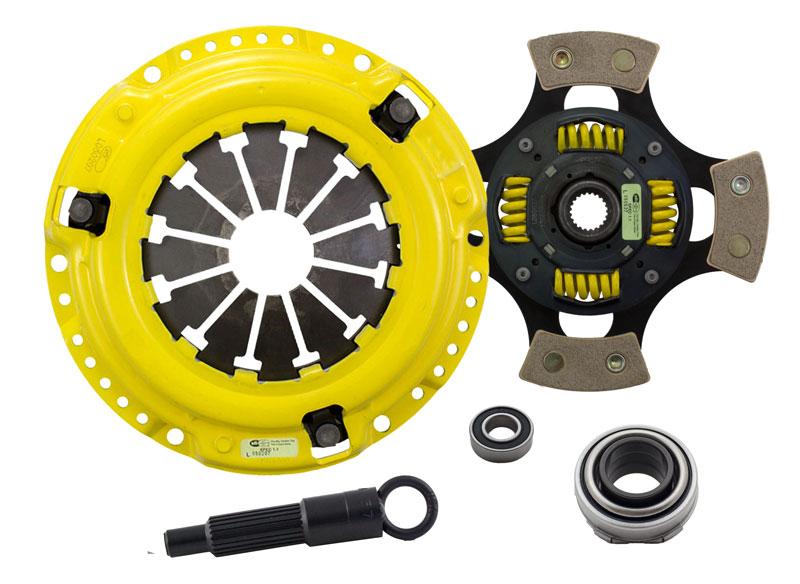

What's In The Box?

  • Clutch Friction Disc (4212111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
