• ACT MaXX/Race Sprung 4 Pad Clutch Kit | Mazda 929 (1988) (Z64-XXG4)
1 1

ACT MaXX/Race Sprung 4 Pad Clutch Kit | Mazda 929 (1988) (Z64-XXG4)

ACT MaXX/Race Sprung 4 Pad Clutch Kit | Mazda 929 (1988) (Z64-XXG4)

Z64-XXG4

Out of stock

$641.00 USD
$791.00 USD $641.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 4 Pad Clutch Kit for the Mazda 929 (1988) is a high-performance clutch assembly designed for serious driving enthusiasts. It features a MaXX pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes a four-pad spring-centered race disc with spring-center construction, which effectively dampens torsional vibrations and enhances engagement stability. Built with precision cover stampings, this clutch kit offers increased rigidity and reliability, making it suitable for high-stress applications and spirited driving.

Designed specifically for the 1988 Mazda 929, this clutch kit is compatible with models equipped with the Z64 engine code. It serves as a direct replacement upgrade for stock clutch components, providing improved clamp load and heat resistance for aggressive street or track use. Installation involves standard bolt-on procedures, and the kit typically includes the pressure plate, clutch disc, and necessary hardware. Ideal for performance-oriented street driving, racing, or track days, this clutch kit delivers enhanced torque capacity and longevity, ensuring consistent power transfer and reliable operation under high-performance conditions.

Overview

ACT MaXX/Race Sprung 4 Pad Kit

Z64-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 16.1
  • Torque Capacity (ft/lbs.): 625
  • Torque Capacity Over OE: 1.56
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1988-1991 Mazda 929
  • 1989-1992 Ford Probe
  • 1988-1991 Mazda 626
  • 1988-1992 Mazda MX-6

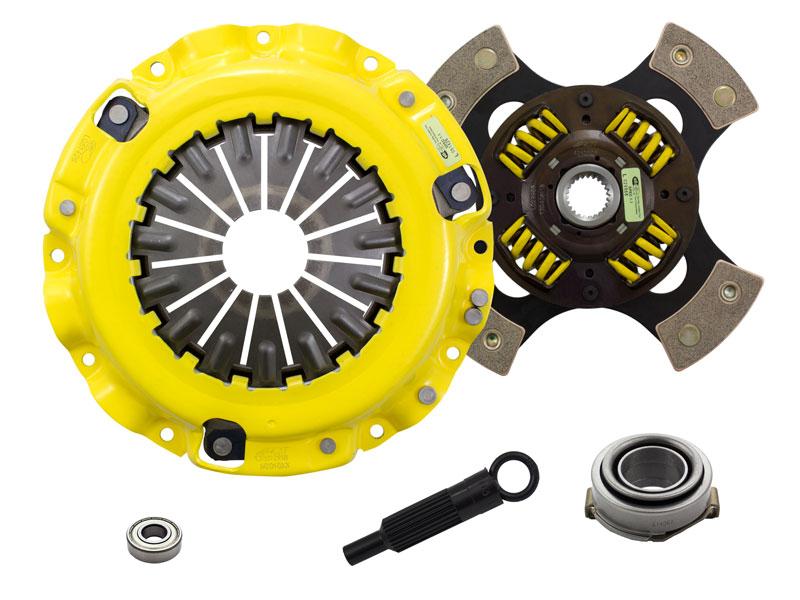

What's In The Box?

  • Clutch Friction Disc (4240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010XX)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
