ACT MaXX/Race Sprung 6 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XXG6)

ACT MaXX/Race Sprung 6 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XXG6)

Z65-XXG6

In stock

$680.00 USD
$840.00 USD $680.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 6 Pad Clutch Kit for the Mazda RX-7 (87-91) is a high-performance clutch assembly designed for serious driving enthusiasts. This kit features a MaXX pressure plate that employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under demanding conditions. The clutch disc is a 6-pad, spring-centered race disc with spring-center construction that effectively dampens torsional vibrations, providing smoother engagement and enhanced control. Built with precision cover stampings, the components deliver rigidity and consistency, making this kit ideal for high-performance applications.

Designed for 1987 to 1991 Mazda RX-7 models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for street, track, or racing use, offering increased clamping force and durability for high-stress driving. Installation involves replacing the existing clutch with this bolt-on assembly, ensuring a straightforward upgrade process. The kit includes the pressure plate, clutch disc, and necessary hardware, providing a comprehensive solution for improved power transfer and longevity. Compatible with the stock flywheel and suitable for turbocharged or naturally aspirated engines, this clutch kit enhances performance while maintaining reliability in demanding driving scenarios.

Overview

ACT MaXX/Race Sprung 6 Pad Kit

Z65-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Flywheel requires counterweight (not included).
  • Product Weight (lbs.): 16.6
  • Torque Capacity (ft/lbs.): 625
  • Torque Capacity Over OE: 1.56
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1991 Mazda RX-7

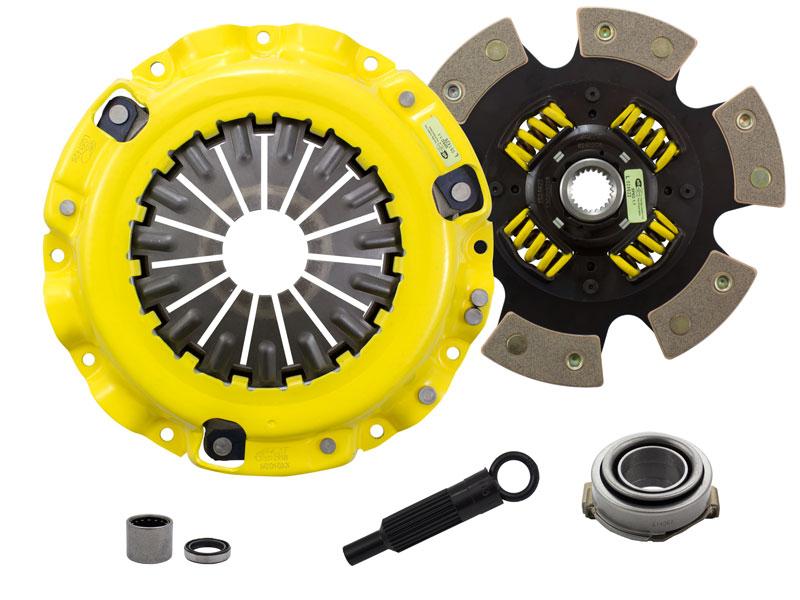

What's In The Box?

  • Clutch Friction Disc (6240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010XX)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
