ACT MaXX/Race Sprung 6 Pad Clutch Kit | Honda Civic (88) (HC7-XXG6)

ACT MaXX/Race Sprung 6 Pad Clutch Kit | Honda Civic (88) (HC7-XXG6)

HC7-XXG6

In stock

$608.00 USD
$751.00 USD $608.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 6 Pad Clutch Kit for Honda Civic (88) is a high-performance clutch assembly designed for serious driving enthusiasts. It features a MaXX pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced power transfer. Constructed with precision cover stampings, this clutch assembly delivers increased rigidity and reliability, making it suitable for aggressive street and track use.

Designed for the 1988 Honda Civic (HC7 chassis), this clutch kit is a direct replacement upgrade for stock components. It is ideal for high-performance applications, including racing and spirited driving, where maximum clamping force and durability are required. The kit is a bolt-on installation, compatible with the stock flywheel and transmission setup. It provides improved torque capacity and pedal feel, making it suitable for vehicles subjected to increased power levels or frequent track use. This clutch kit is engineered to withstand high temperatures and heavy-duty use, ensuring long-lasting performance in demanding driving environments.

Overview

ACT MaXX/Race Sprung 6 Pad Kit

HC7-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.73
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic

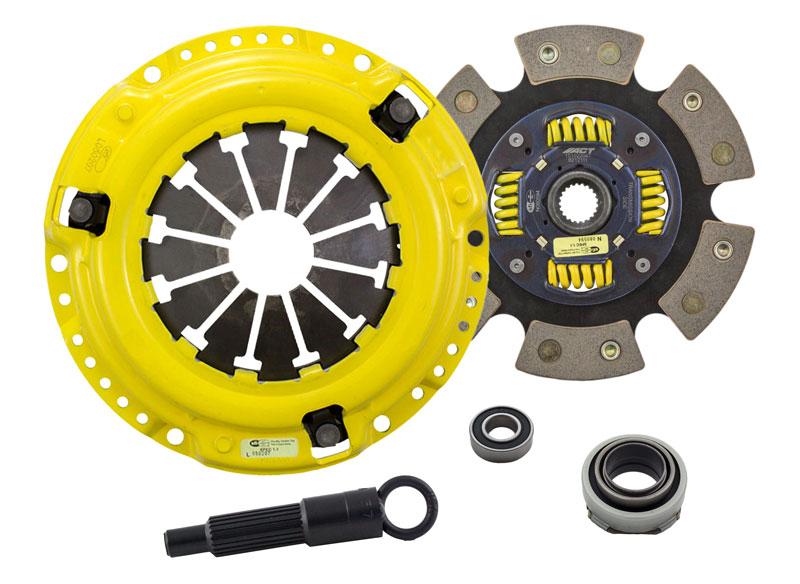

What's In The Box?

  • Clutch Friction Disc (6212111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
