ACT MaXX/Race Sprung 6 Pad Clutch Kit | Honda Civic (89-91) (HW4-XXG6)

ACT MaXX/Race Sprung 6 Pad Clutch Kit | Honda Civic (89-91) (HW4-XXG6)

HW4-XXG6

In stock

$608.00 USD
$751.00 USD $608.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 6 Pad Clutch Kit for Honda Civic (89-91) is a high-performance clutch assembly designed for serious driving enthusiasts. This kit features a MaXX pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The all-metal diaphragm and precision cover stampings provide added rigidity and stability, while the 6-pad, spring-centered race disc offers optimal damping and engagement characteristics. This combination delivers enhanced power transfer, improved pedal feel, and increased longevity for aggressive driving scenarios.

Designed specifically for 1989-1991 Honda Civic models, this clutch kit is a direct replacement for stock components, suitable for street, track, or racing applications. It is engineered to handle higher torque loads and aggressive driving styles, making it ideal for performance upgrades. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with stock or upgraded flywheels, this clutch assembly provides reliable engagement and smooth operation. Whether for daily driving or competitive racing, this ACT clutch kit offers the performance and durability needed for demanding automotive enthusiasts.

Overview

ACT MaXX/Race Sprung 6 Pad Kit

HW4-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.73
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda Civic

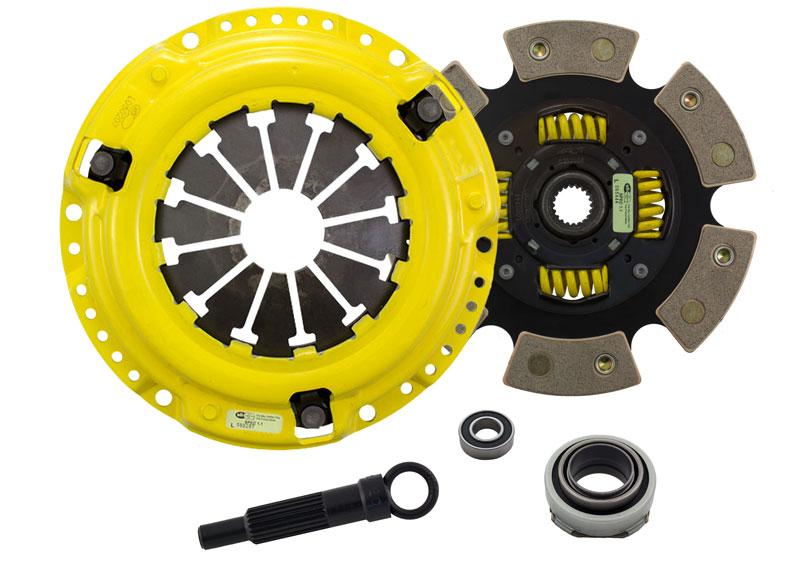

What's In The Box?

  • Clutch Friction Disc (6212104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
