ACT MaXX/Race Sprung 6 Pad Clutch Kit | Acura Integra (92-93) (AI3-XXG6)

ACT MaXX/Race Sprung 6 Pad Clutch Kit | Acura Integra (92-93) (AI3-XXG6)

AI3-XXG6

In stock

$697.00 USD
$860.00 USD $697.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 6 Pad Clutch Kit for Acura Integra (92-93) is a high-performance clutch assembly designed for serious driving enthusiasts. This kit features ACT's MaXX pressure plate, which employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The clutch disc is a 6-pad, spring-centered race disc with spring-center construction, providing effective damping of torsional vibrations and enhancing overall clutch stability. Built with precision cover stampings, this kit delivers increased rigidity and reliability, making it suitable for high-stress applications.

Designed for 1992-1993 Acura Integra models, this clutch kit is an ideal upgrade for street or track use, offering improved holding capacity and longevity. It is a direct replacement for stock clutch components, ensuring straightforward installation. The kit includes the MaXX pressure plate and a matching 6-pad race disc, optimized for high-performance driving scenarios. Compatible with stock or modified engines, this clutch assembly is suited for enthusiasts seeking increased performance and durability in their daily or racing setups. Proper installation ensures maximum engagement and clutch life, making it a reliable choice for demanding driving conditions.

Overview

ACT MaXX/Race Sprung 6 Pad Kit

AI3-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.3
  • Torque Capacity (ft/lbs.): 485
  • Torque Capacity Over OE: 1.62
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1992-1993 Acura Integra

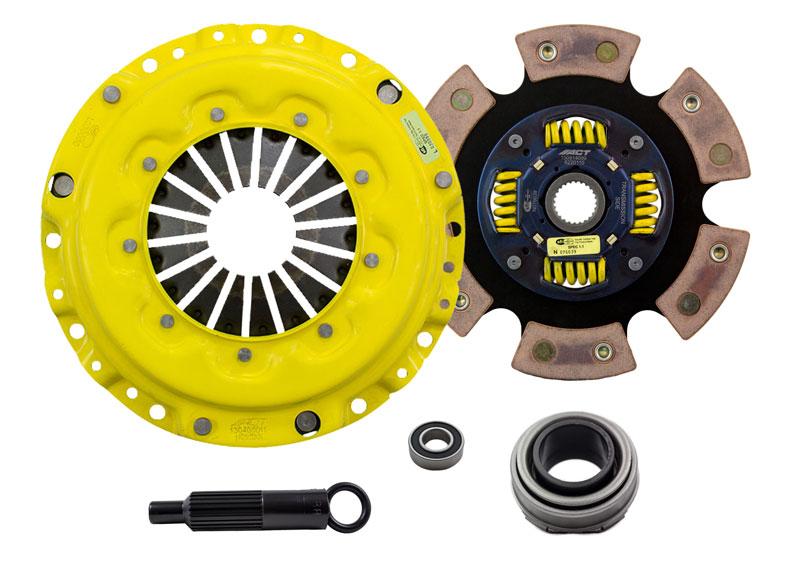

What's In The Box?

  • Clutch Friction Disc (6220110)
  • Clutch Alignment Tool (AT88)
  • Clutch Pressure Plate (H025XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)

References

Warranty

  • Manufacturer 1 Year Warranty
