• ACT MaXX Extreme Race Sprung 6 Pad Clutch Kit | Honda Civic (1990) (HC4-XXG6)
1 1

ACT MaXX Extreme Race Sprung 6 Pad Clutch Kit | Honda Civic (1990) (HC4-XXG6)

ACT MaXX Extreme Race Sprung 6 Pad Clutch Kit | Honda Civic (1990) (HC4-XXG6)

HC4-XXG6

In stock

$603.00 USD
$744.00 USD $603.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX Extreme Race Sprung 6 Pad Clutch Kit for Honda Civic (1990) is a high-performance clutch assembly designed for serious driving enthusiasts. Featuring ACT's MaXX pressure plate with an exclusive diaphragm design, this kit provides increased clamp load, reduced deflection, and extended clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings enhance rigidity. The included 6-pad, spring-centered race disc is engineered to dampen torsional vibrations effectively, delivering reliable power transfer during aggressive driving. This combination results in improved torque capacity, responsiveness, and longevity, making it ideal for track use or high-stress street applications.

Designed specifically for the 1990 Honda Civic, this clutch kit is a direct replacement for stock components, offering a performance upgrade for vehicles with modified or stock engines. It is suitable for use in street, track, or competition environments where maximum clamping force and durability are required. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included for a straightforward upgrade. This kit is compatible with the HC4 chassis code and is optimized for high-performance driving scenarios, providing a reliable and consistent clutch engagement under demanding conditions.

Overview

ACT MaXX/Race Sprung 6 Pad Kit

HC4-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.73
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda Civic
  • 1989-1991 Honda CRX

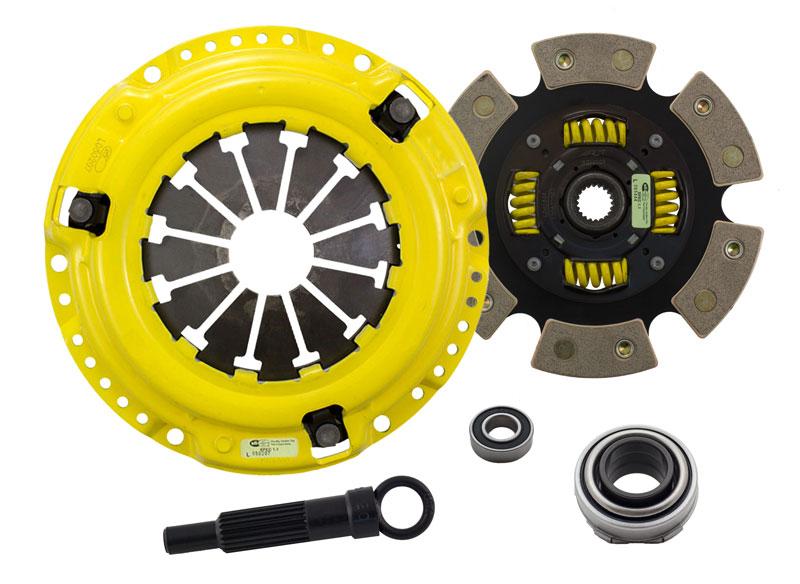

What's In The Box?

  • Clutch Friction Disc (6212104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
