ACT MaXX Extreme Race Sprung 6 Pad Clutch Kit | Honda Civic (1988) (HC6-XXG6)

ACT MaXX Extreme Race Sprung 6 Pad Clutch Kit | Honda Civic (1988) (HC6-XXG6)

HC6-XXG6

In stock

$603.00 USD
$744.00 USD $603.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX Extreme Race Sprung 6 Pad Clutch Kit for Honda Civic (1988) is a high-performance clutch assembly designed for serious driving enthusiasts. This kit features the MaXX pressure plate, which employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The inclusion of a 6-pad, spring-centered race disc provides optimal damping and engagement characteristics, making it suitable for aggressive driving and racing applications. Constructed with precision cover stampings, the clutch components deliver enhanced rigidity and reliability, ensuring maximum power transfer and longevity.

This clutch kit is specifically designed for the 1988 Honda Civic, providing a direct replacement for stock components. It is ideal for track use, high-performance street driving, or any application requiring increased clamping force and durability. The kit includes all necessary components for installation, such as the pressure plate and race disc, ensuring a straightforward upgrade process. Compatible with the original flywheel and transmission setup, this clutch kit offers a reliable upgrade for enthusiasts seeking improved performance and longevity in their Civic's clutch system.

Overview

ACT MaXX/Race Sprung 6 Pad Kit

HC6-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Alignment Tool Included: Yes
  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 420
  • Torque Capacity Over OE: 1.73
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875

Applications

  • 1988-1988 Honda Civic
  • 1988-1988 Honda CRX

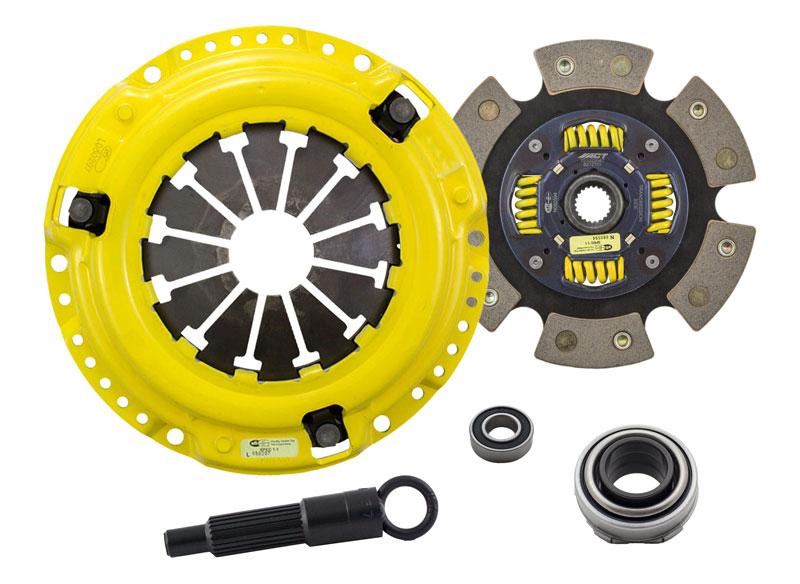

What's In The Box?

  • Clutch Friction Disc (6212111)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023XX)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
