• ACT MaXX/Race Sprung 6 Pad Clutch Kit | Mazda 929 (1988) (Z64-XXG6)
1 1

ACT MaXX/Race Sprung 6 Pad Clutch Kit | Mazda 929 (1988) (Z64-XXG6)

ACT MaXX/Race Sprung 6 Pad Clutch Kit | Mazda 929 (1988) (Z64-XXG6)

Z64-XXG6

Out of stock

$671.00 USD
$828.00 USD $671.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX/Race Sprung 6 Pad Clutch Kit for the Mazda 929 (1988) is a high-performance clutch assembly designed for serious driving enthusiasts. It features a MaXX pressure plate that employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The kit includes a 6-pad, spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and enhanced power transfer. Constructed with precision cover stampings, this clutch kit offers rigidity and reliability for aggressive driving scenarios.

Designed specifically for the 1988 Mazda 929, this clutch kit is a direct replacement for stock components, suitable for street and track use. It is engineered to handle increased torque and high-performance demands, making it ideal for racing or spirited driving. The assembly is a bolt-on upgrade that requires no modifications for installation. The kit typically includes the pressure plate, race disc, and necessary hardware, ensuring a comprehensive upgrade. Compatible with the original flywheel, this clutch kit provides improved holding capacity and longevity for demanding applications.

Overview

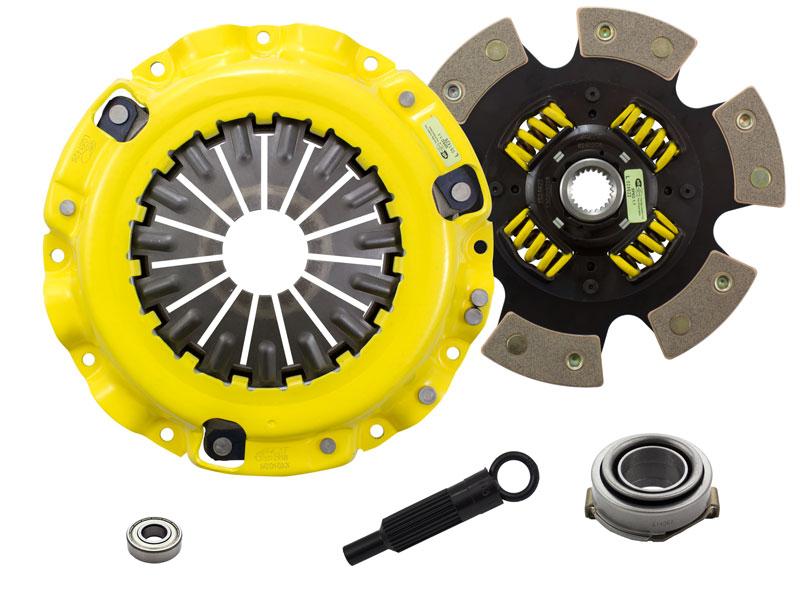

ACT MaXX/Race Sprung 6 Pad Kit

Z64-XXG6 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 16.6
  • Torque Capacity (ft/lbs.): 625
  • Torque Capacity Over OE: 1.56
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: MaXX
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1988-1991 Mazda 626
  • 1989-1992 Ford Probe
  • 1988-1991 Mazda 929
  • 1988-1992 Mazda MX-6

What's In The Box?

  • Clutch Friction Disc (6240208)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010XX)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
