ACT MaXX Xtreme 4-Puck Clutch Kit | Eclipse GSX/Talon TSi/3000GT (90-99) (MB1-XXR4)

ACT MaXX Xtreme 4-Puck Clutch Kit | Eclipse GSX/Talon TSi/3000GT (90-99) (MB1-XXR4)

MB1-XXR4

In stock

$586.00 USD
$724.00 USD $586.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

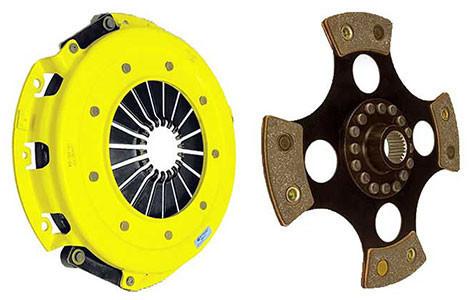

The ACT MaXX Xtreme 4-Puck Clutch Kit is a high-performance clutch assembly designed for serious driving enthusiasts seeking enhanced grip and durability. This kit includes a 4-puck solid hub disc and a MaXX pressure plate, engineered to deliver increased clamp load and improved heat dissipation. The pressure plate features an exclusive diaphragm design, which reduces deflection and maximizes clutch life, making it suitable for demanding street and track applications. Constructed with precision and heat-treated components, this clutch kit ensures reliable engagement and long-lasting performance under high-stress conditions.

Compatible with 1990-1999 Mitsubishi Eclipse GSX, Eagle Talon TSi, Plymouth Laser RS, and 1991-1999 Mitsubishi 3000GT and Dodge Stealth models, this kit is tailored for turbocharged four-cylinder and V6 engines. It serves as a direct replacement for stock clutches, providing a significant upgrade for increased power handling and improved shift response. The kit is ideal for performance-oriented street driving, racing, or off-road use, and includes all necessary components for straightforward installation. Designed to withstand aggressive driving, this clutch kit enhances vehicle performance and reliability in high-performance applications.

Overview

1990-1999 Mitsubishi Eclipse GSX/Eagle Talon TSi/Plymouth Laser RS, and 1991-1999 Mitsubishi 3000GT/Dodge Stealth MaXX Xtreme/4-Puck Solid Hub Disc Clutch Kit by ACT

MB1-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.7
  • Torque Capacity (ft/lbs.): 570
  • Torque Capacity Over OE: 125%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 8.8
  • Clutch Disc Diameter (Millimeters): 224
  • Input Shaft Diameter (inches): 0.875
  • Pressure Plate Type: MaXX

Benefits

  • Feel: Heavy to very heavy pedal effort, aggressive engagement, quickest shifts, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1991-1996 Dodge Stealth Base, ES, R/T
  • 1990-1994 Plymouth Laser RS
  • 1990-1998 Eagle Talon TSi
  • 1991-1999 Mitsubishi 3000GT Base & SL
  • 1990-2005 Mitsubishi Eclipse GSX, GST, GS Spyder, & GST Spyder
  • 1991-1999 Mitsubishi Galant VR-4

What's In The Box?

  • 1 - MaXX Xtreme/4-Puck Solid Hub Disc Clutch Kit

Warranty

  • ACT's Standard 1-Year Limited Warranty
