ACT MaXX Xtreme Race Sprung 4-Puck Disc Clutch Kit | Mitsubishi 1G/2G DSM (MB1-XXG4)

ACT MaXX Xtreme Race Sprung 4-Puck Disc Clutch Kit | Mitsubishi 1G/2G DSM (MB1-XXG4)

MB1-XXG4

In stock

$642.00 USD
$792.00 USD $642.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX Xtreme Race Sprung 4-Puck Disc Clutch Kit for Mitsubishi 1G and 2G DSM models is a high-performance clutch system designed for serious driving enthusiasts. This kit features a MaXX pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under demanding conditions. The 4-pad spring-centered race disc incorporates spring-center construction, providing smooth engagement and reliable power transfer. Built with precision cover stampings, the clutch components deliver rigidity and stability, making it suitable for aggressive driving and racing applications.

This clutch kit is compatible with Mitsubishi 1G and 2G DSM vehicles, including models with specific engine configurations. It is intended for use in street, track, or drag racing scenarios where high clamp loads and durability are essential. The kit is a direct replacement for stock components, offering a bolt-on installation for qualified technicians or experienced enthusiasts. It includes the pressure plate, race disc, and necessary hardware, ensuring a complete upgrade. Designed to handle increased power levels, this clutch kit enhances performance and longevity for high-performance street and racing setups.

Overview

ACT MaXX Xtreme 4-Puck Sprung Disc Clutch Kit

MB1-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Torque Capacity (ft/lbs.) 570
  • Torque Capacity Over OE 125%
  • Disc Material Ceramic
  • Clutch Disc Diameter (Inches) 8.8
  • Clutch Disc Diameter (Millimeters) 224
  • Input Shaft Diameter (inches) 0.875
  • Pressure Plate Type MaXX

Benefits

  • Heavy to very heavy pedal effort, aggressive engagement, quicker shifts, mild to moderate gear rattle
  • Moderate friction life, extended by ACT's exclusive diaphragm design
  • Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended for high horsepower street or race use
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1991-1996 Dodge Stealth Base, ES, R/T
  • 1990-1994 Plymouth Laser RS
  • 1990-1998 Eagle Talon TSi
  • 1991-1999 Mitsubishi 3000GT Base & SL
  • 1990-2005 Mitsubishi Eclipse GSX, GST, GS Spyder, & GST Spyder
  • 1991-1999 Mitsubishi Galant VR-4

What's In The Box?

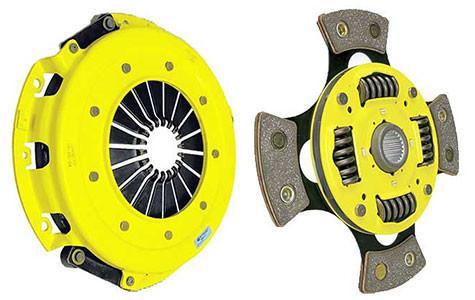

  • (1) 4 Pad Sprung Disc 4224704
  • (1) MaXX Xtreme Pressure Plate MB010XX
  • (1) Alignment Tool AT20
  • (1) Release Bearing RB210

References

Warranty

  • Manufacturer Standard Warranty
View full details
