ACT MaXX Xtreme 6 Pad Clutch Kit | Eclipse GSX/Talon TSi/3000GT (90-99) (MB1-XXR6)

ACT MaXX Xtreme 6 Pad Clutch Kit | Eclipse GSX/Talon TSi/3000GT (90-99) (MB1-XXR6)

MB1-XXR6

In stock

$612.00 USD
$756.00 USD $612.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT MaXX Xtreme 6 Pad Clutch Kit is a high-performance clutch assembly designed for serious driving enthusiasts. Specifically engineered for 1990-1999 Mitsubishi Eclipse GSX, Eagle Talon TSi, Plymouth Laser RS, and 1991-1999 Mitsubishi 3000GT and Dodge Stealth models, this kit features a MaXX pressure plate that enhances clamp load and reduces deflection for improved power transfer and durability. The clutch kit includes a solid hub 6 pad disc, which provides increased holding capacity and consistent engagement. ACT’s exclusive diaphragm design and four-stage heat treatment process ensure maximum performance, heat resistance, and extended clutch life. Precision cover stampings contribute to the overall strength and reliability of the assembly, making it suitable for aggressive street and track use.

This clutch kit is a direct replacement for stock components on compatible vehicles, offering a bolt-on upgrade that requires no additional modifications. It is ideal for high-performance street driving, racing, or applications demanding increased torque capacity. The kit is designed to fit 1990-1999 Mitsubishi Eclipse GSX, Eagle Talon TSi, Plymouth Laser RS, as well as 1991-1999 Mitsubishi 3000GT and Dodge Stealth models, with specific fitment for models equipped with the appropriate engine and chassis configurations. Installation involves replacing the existing clutch components with this upgraded assembly, providing enhanced holding power and longevity for demanding driving conditions.

Overview

1990-1999 Mitsubishi Eclipse GSX/Eagle Talon TSi/Plymouth Laser RS, and 1991-1999 Mitsubishi 3000GT/Dodge Stealth MaXX Xtreme Solid Hub 6 Pad Disc Clutch Kit by ACT

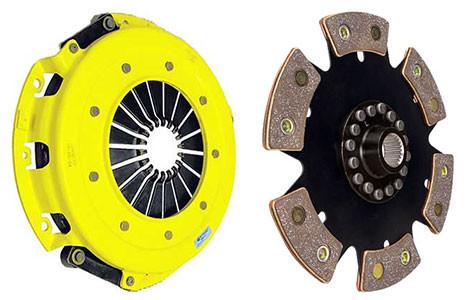

MB1-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.2
  • Torque Capacity (ft/lbs.): 570
  • Torque Capacity Over OE: 125%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 8.8
  • Clutch Disc Diameter (Millimeters): 224
  • Input Shaft Diameter (inches): 0.875
  • Pressure Plate Type: MaXX

Benefits

  • Feel: Heavy to very heavy pedal effort, aggressive engagement, quicker shifts, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1991-1996 Dodge Stealth Base, ES, R/T
  • 1990-1994 Plymouth Laser RS
  • 1990-1998 Eagle Talon TSi
  • 1991-1999 Mitsubishi 3000GT Base & SL
  • 1990-2005 Mitsubishi Eclipse GSX, GST, GS Spyder, & GST Spyder
  • 1991-1999 Mitsubishi Galant VR-4

What's In The Box?

  • 1 - MaXX Xtreme Solid Hub 6 Pad Disc Clutch Kit

Warranty

  • ACT's Standard 1-Year Limited Warranty
