• ACT Sport Race Sprung 4 Pad Clutch Kit | Honda Civic (92-05) / Del Sol (93-97) / Acura EL (97-05) (HC5-SPG4)
1 1

ACT Sport Race D&S 4 Pad Clutch Kit | Honda Civic/Del Sol/Acura EL (92-05) (HC5-SPG4)

ACT Sport Race D&S 4 Pad Clutch Kit | Honda Civic/Del Sol/Acura EL (92-05) (HC5-SPG4)

HC5-SPG4

In stock

$431.00 USD
$532.00 USD $431.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Sport Race D&S 4 Pad Clutch Kit is a high-performance upgrade designed for Honda Civic, Del Sol, and Acura EL models from 1992 to 2005. This kit combines ACT's Sport pressure plate with a ceramic 4-pad sprung race disc, delivering exceptional clamping force and durability. The pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life, making it ideal for spirited driving and racing applications. All components undergo a four-stage heat-treating process to ensure maximum performance and longevity. The precision cover stampings on the pressure plate provide added rigidity and consistency, enhancing overall clutch response and pedal feel. This kit is engineered for enthusiasts seeking a reliable, high-capacity clutch solution that withstands aggressive driving conditions while maintaining smooth engagement and reliable power transfer.

Designed as a direct replacement for stock units, the ACT Sport Race D&S 4 Pad Clutch Kit fits 1992-2005 Honda Civic, 1993-1997 Del Sol, and 1997-2005 Acura EL models. It is suitable for street, track, and racing use, offering a significant upgrade over OEM clutches in terms of holding capacity and heat resistance. The kit includes a ceramic 4-pad sprung race disc and a high-performance pressure plate, providing a balanced combination of durability and engagement characteristics. Installation is straightforward for experienced technicians familiar with clutch replacement procedures. This clutch kit is compatible with stock flywheels and requires no additional modifications, making it an excellent choice for those looking to improve their vehicle’s performance and reliability under demanding driving conditions.

Overview

92-05 Honda Civic / 93-97 Del Sol & 97-05 Acura EL Sport Race Clutch Kit by ACT

This kit features ACT's Sport pressure plate paired with their ceramic 4-pad sprung race disc.

ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 250 ft/lbs
  • Torque Capacity (% Over OE): 54%

Applications

  • 1992 - 2005 Honda Civic
  • 1992 - 1998 Honda Civic Si
  • 1993 - 1997 Honda Civic Del Sol
  • 1997 - 2005 Acura EL

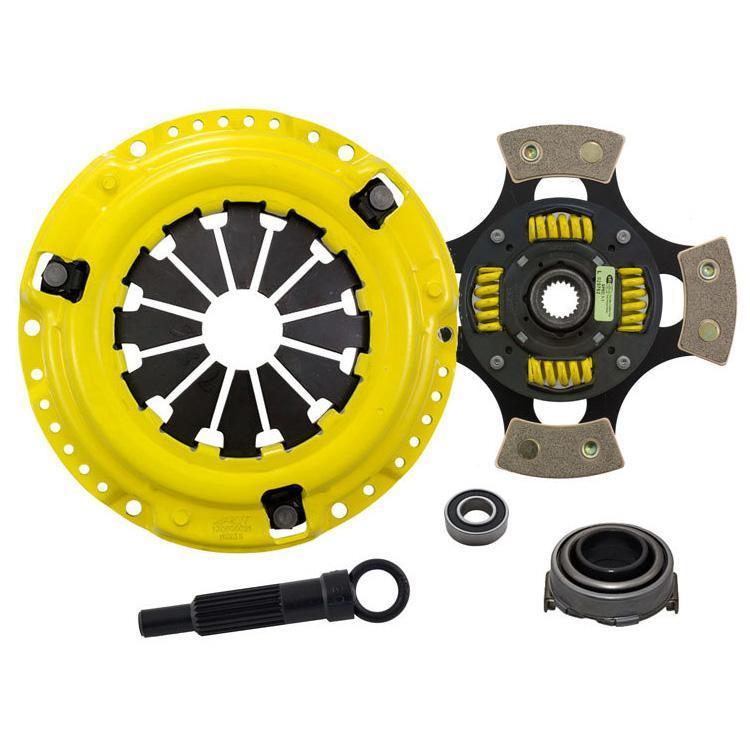

What's In The Box?

  • 1 - Sport Pressure Plate
  • 1 - Sprung 4-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
