| Year | Make | Model |
|---|---|---|
| 1992 - 1993 | Acura | Integra GS |
| 1992 - 1993 | Acura | Integra GS-R |
| 1992 - 1993 | Acura | Integra LS |
| 1992 - 1993 | Acura | Integra RS |
ACT Sport Race Rigid 4 Pad Clutch Kit | Acura Integra (92-93) (AI3-SPR4)
ACT Sport Race Rigid 4 Pad Clutch Kit | Acura Integra (92-93) (AI3-SPR4)
SKU:AI3-SPR4
Out of stock
Couldn't load pickup availability
▶ Vehicle Fitments
The ACT Sport Race Rigid 4 Pad Clutch Kit for Acura Integra (92-93) is a high-performance clutch upgrade designed for enthusiasts seeking improved durability and engagement. This kit features a sport pressure plate with an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure maximum performance and reliability. The kit includes ACT's 4-pad rigid race discs made from high-quality ceramic friction materials, providing excellent heat resistance and consistent power transfer. Constructed with precision cover stampings for added rigidity and stability, this clutch kit is engineered to handle aggressive driving conditions while maintaining smooth operation.
Designed for 1992-1993 Acura Integra models, this clutch kit is compatible with vehicles equipped with the B-series engine. It serves as a direct replacement or upgrade for stock clutch components, ideal for street and track use where enhanced grip and durability are required. The installation involves replacing the existing clutch assembly with the included components, offering a straightforward bolt-on process. This kit is suitable for performance-oriented driving, including spirited street driving and racing applications. It provides increased clamping force and heat resistance, ensuring reliable performance under demanding conditions.
Share
Overview
Overview

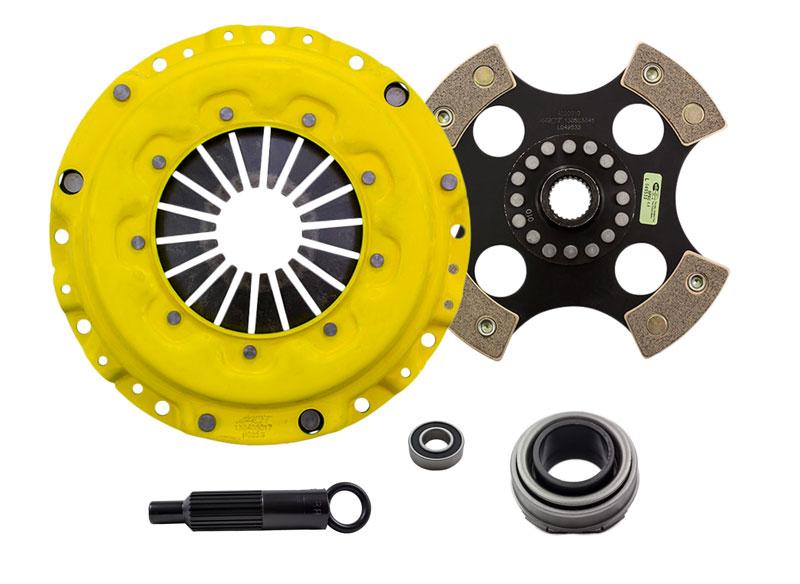

ACT Sport/Race Rigid 4 Pad Kit
AI3-SPR4 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Features
- Product Weight (lbs.): 11.8
- Torque Capacity (ft/lbs.): 280
- Torque Capacity Over OE: 0.52
- Pilot Bushing Included: Yes
- Pressure Plate Type: Sport
- Release Bearing Included: Yes
- Clutch Disc Diameter (in.): 8.7
- Clutch Disc Diameter (mm): 220
- Disc Material: Ceramic
- Input Spline Quantity: 24
- Input Shaft Diameter (in.): 1.03125
- Alignment Tool Included: Yes
Applications
- 1992-1993 Acura Integra
What's In The Box?
- Clutch Friction Disc (4220010)
- Clutch Alignment Tool (AT88)
- Clutch Pressure Plate (H025S)
- Clutch Pilot Bearing (PB1002)
- Clutch Release Bearing (RB837)
References
Warranty
- Manufacturer 1 Year Warranty
