ACT Sport Race Sprung 4 Pad Clutch Kit | Honda Civic (89-91) (HW4-SPG4)

ACT Sport Race Sprung 4 Pad Clutch Kit | Honda Civic (89-91) (HW4-SPG4)

HW4-SPG4

In stock

$431.00 USD
$532.00 USD $431.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Sport Race Sprung 4 Pad Clutch Kit is a high-performance clutch upgrade designed for Honda Civic models from 1989 to 1991. This kit features a sport pressure plate that enhances clamping force and overall drivetrain responsiveness. The pressure plate utilizes an exclusive diaphragm design, which increases clamp load, reduces deflection, and extends clutch life. All diaphragms undergo a four-stage heat-treating process to ensure durability and consistent performance. The kit also includes a 4-pad spring-centered race disc with spring-center construction, effectively damping torsional vibrations and providing smooth engagement. Built with precision cover stampings, this clutch assembly offers rigidity and reliability for spirited driving and racing applications.

Designed specifically for 1989-1991 Honda Civic models, this clutch kit is a direct replacement for stock components, suitable for street and track use. It is engineered to handle increased power levels and aggressive driving conditions while maintaining smooth operation. The kit is a bolt-on upgrade that simplifies installation without requiring additional modifications. Compatible with stock or upgraded flywheels, it provides a reliable solution for enthusiasts seeking improved clutch performance. This clutch kit is ideal for those looking to enhance their vehicle’s acceleration, durability, and overall driving experience in demanding environments.

Overview

ACT Sport/Race Sprung 4 Pad Kit

HW4-SPG4 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 10.5
  • Torque Capacity (ft/lbs.): 250
  • Torque Capacity Over OE: 0.64
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Sport
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda Civic

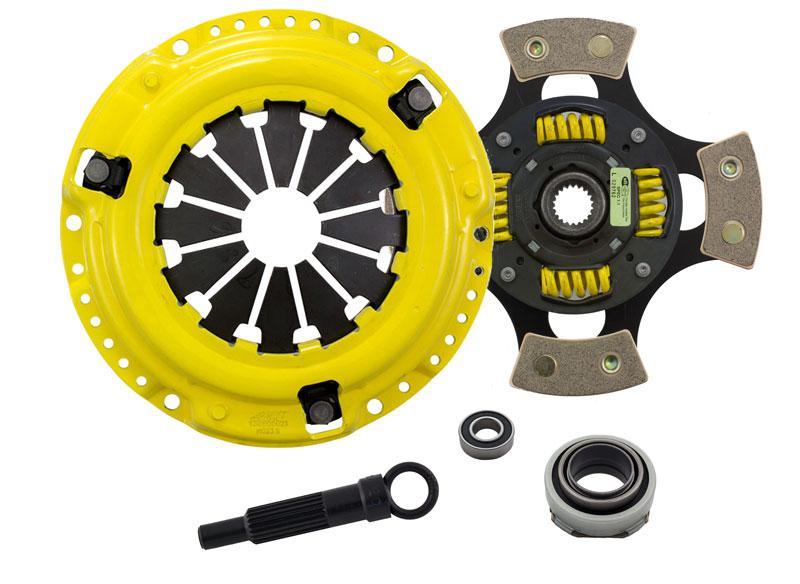

What's In The Box?

  • Clutch Friction Disc (4212104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023S)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
