ACT Sport Race Sprung 4 Pad Clutch Kit | 1991 Geo Prizm (TC1-SPG4)

ACT Sport Race Sprung 4 Pad Clutch Kit | 1991 Geo Prizm (TC1-SPG4)

TC1-SPG4

In stock

$453.00 USD
$559.00 USD $453.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Sport Race Sprung 4 Pad Clutch Kit for the 1991 Geo Prizm is a high-performance upgrade designed to enhance clutch engagement and durability. This kit includes a sport pressure plate featuring ACT's exclusive diaphragm design, which increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure maximum performance and reliability. The kit also features a 4-pad spring-centered race disc with spring-center construction, providing effective torsional damping and smooth engagement. Built with precision cover stampings, these components deliver rigidity and consistency for spirited driving and racing applications.

Designed specifically for the 1991 Geo Prizm, this clutch kit is a direct replacement for stock components, offering improved performance for street and track use. It is suitable for models equipped with compatible manual transmissions and is ideal for drivers seeking increased clamp force and longevity. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Suitable for enthusiasts and racers alike, this clutch kit enhances overall drivability and power transfer, making it a reliable choice for demanding driving conditions.

Overview

ACT Sport/Race Sprung 4 Pad Kit

TC1-SPG4 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.2
  • Torque Capacity (ft/lbs.): 285
  • Torque Capacity Over OE: 0.59
  • Pressure Plate Type: Sport
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Toyota Corolla
  • 1990-1991 Toyota Celica
  • 1985-1989 Toyota MR2
  • 1990-1991 Geo Prizm

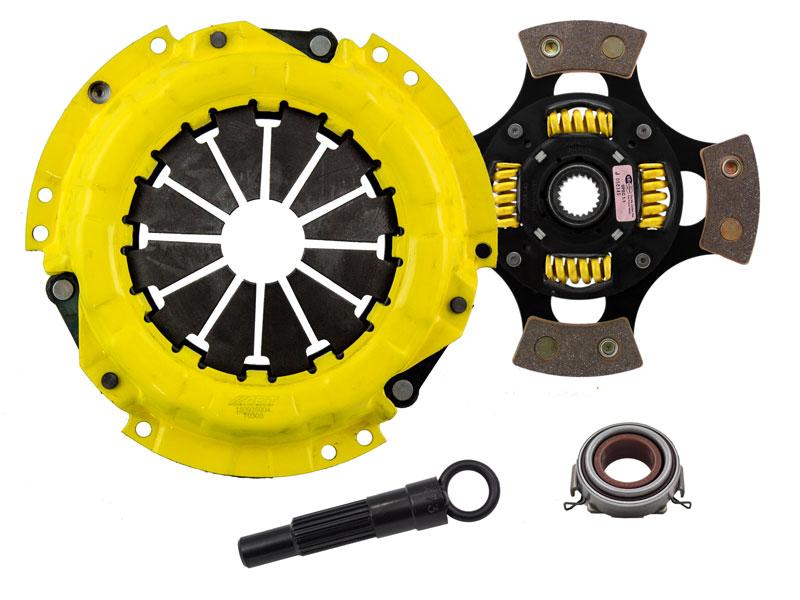

What's In The Box?

  • Clutch Friction Disc (4212103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB371)
  • Clutch Pressure Plate (T030S)

References

Warranty

  • Manufacturer 1 Year Warranty
