ACT Sport Race Sprung 4 Pad Clutch Kit | 1991 Geo Prizm (TC2-SPG4)

ACT Sport Race Sprung 4 Pad Clutch Kit | 1991 Geo Prizm (TC2-SPG4)

TC2-SPG4

Out of stock

$463.00 USD
$572.00 USD $463.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Sport Race Sprung 4 Pad Clutch Kit for the 1991 Geo Prizm is a high-performance clutch upgrade designed to enhance driving experience and durability. This kit includes a sport pressure plate featuring ACT's exclusive diaphragm design, which increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure maximum performance and reliability. The kit also incorporates a 4-pad spring-centered race disc that effectively dampens torsional vibrations, providing smooth engagement and consistent power transfer. Constructed with precision cover stampings, the components deliver rigidity and stability under demanding conditions, making it suitable for spirited driving and track use.

Designed specifically for the 1991 Geo Prizm, this clutch kit is a direct replacement for stock components, offering improved clamping force and durability. It is ideal for street and track applications where enhanced performance and longevity are desired. The kit is compatible with the vehicle's original transmission setup and requires no additional modifications for installation. Perfect for enthusiasts seeking a reliable upgrade, the ACT Sport Race Sprung 4 Pad Clutch Kit ensures optimal engagement and power delivery, making it a suitable choice for both daily driving and competitive driving scenarios.

Overview

ACT Sport/Race Sprung 4 Pad Kit

TC2-SPG4 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.1
  • Torque Capacity (ft/lbs.): 285
  • Torque Capacity Over OE: 0.59
  • Pressure Plate Type: Sport
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 2003-2014 Toyota Matrix
  • 2003-2008 Pontiac Vibe
  • 2000-2005 Toyota MR2 Spyder
  • 1992-2013 Toyota Corolla
  • 1991-1997 Geo Prizm
  • 1991-2005 Toyota Celica

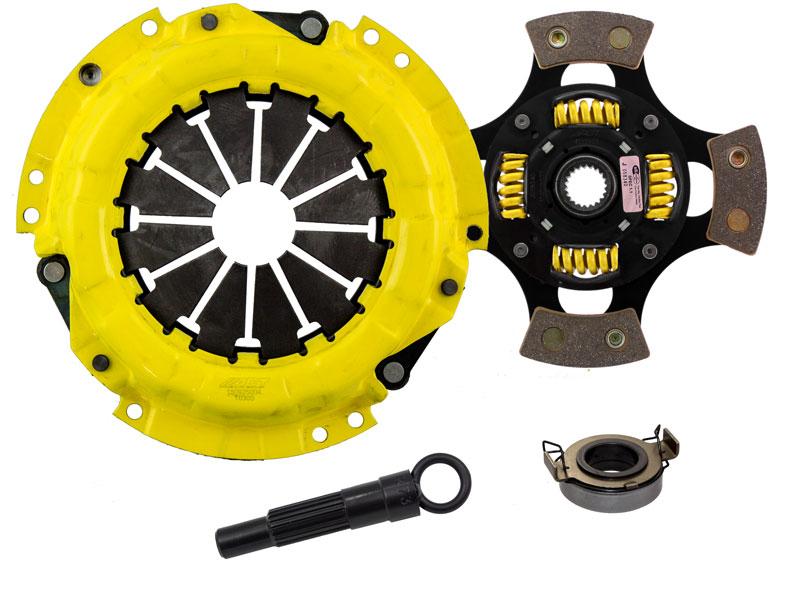

What's In The Box?

  • Clutch Friction Disc (4212103)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB840)
  • Clutch Pressure Plate (T030S)

References

Warranty

  • Manufacturer 1 Year Warranty
