The ACT Sport Race Sprung 6 Pad Clutch Kit for the Honda Civic (1990) is a high-performance clutch upgrade designed to enhance driving experience and durability. This kit features a sport pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring maximum strength and reliability under demanding conditions. The inclusion of a 6-pad, spring-centered race disc provides effective torsional damping, promoting smooth engagement and consistent power transfer. Built with precision cover stampings, this clutch kit delivers rigidity and stability, making it suitable for spirited driving and track use.

Designed specifically for the 1990 Honda Civic, this clutch kit is a direct replacement that offers improved performance over stock components. It is ideal for enthusiasts seeking increased clamp force and durability for street or track applications. The kit is compatible with the original flywheel and requires no additional modifications for installation. Suitable for use in performance-oriented builds, this clutch kit ensures reliable operation during aggressive driving, providing a balanced combination of grip and longevity. The package includes all necessary components for a straightforward installation, making it a reliable upgrade for Honda Civic owners aiming for enhanced clutch performance.

Overview

ACT Sport/Race Sprung 6 Pad Kit

HC4-SPG6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 11.1
  • Torque Capacity (ft/lbs.): 250
  • Torque Capacity Over OE: 0.64
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Sport
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda CRX
  • 1989-1991 Honda Civic

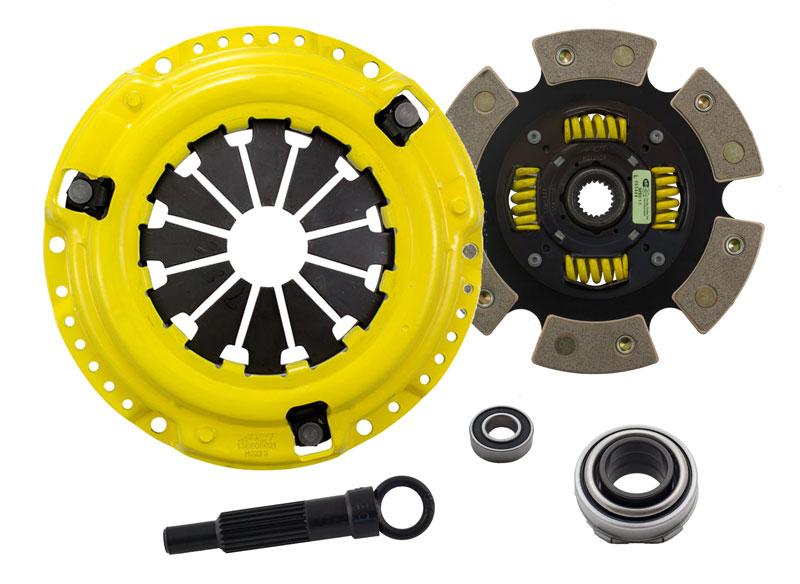

What's In The Box?

  • Clutch Friction Disc (6212104)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023S)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
