ACT Twin Disc HD Race Clutch Kit | 2011-2016 Ford Mustang 5.0L (T1R-F05)

Twin Disc HD Race Clutch Kit by ACT

T1R-F05 twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear.

ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service.

All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Features

• Feel: Light pedal effort, quicker shifts, aggressive engagement, mild to moderate gear rattle
• Life: Doubles the number of disc surfaces for better wear, heat capacity and longer life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for race use only
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 2011 - 2016 Ford Mustang GT
• 2012 - 2013 Ford Mustang Boss 302

Specifications

• Product Weight (lbs.) - 43.9
• Input Shaft Diameter (Inches) - 1
• Spline Count - 23
• Disc Type - 6 Pad Rigid Race Disc
• Disc Diameter (Inches) - 10.5
• Disc Diameter (mm) - 267
• Disc Material - Ceramic
• SFI - 1.2
• Flywheel Tooth Count - 164
• Torque Capacity Over OE - 126%
• Torque Capacity (ft/lbs.) - 1120
• Pressure Plate Type - Heavy Duty

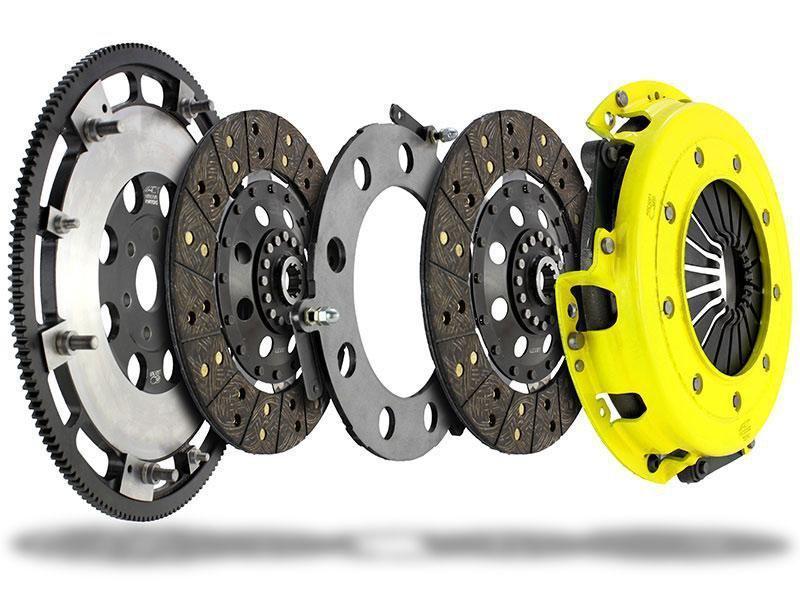

What's In The Box?

• 1 - Heavy Duty Pressure Plate
• 2 - 6 Pad Rigid Race Discs
• 1 - Floater Ring
• 1 - Flywheel
• 1 - Alignment Tool
• 1 - Pilot/Release Bearing (if applicable)

References

• Installation Instructions

Warranty

• ACT 12-Month Limited Warranty
