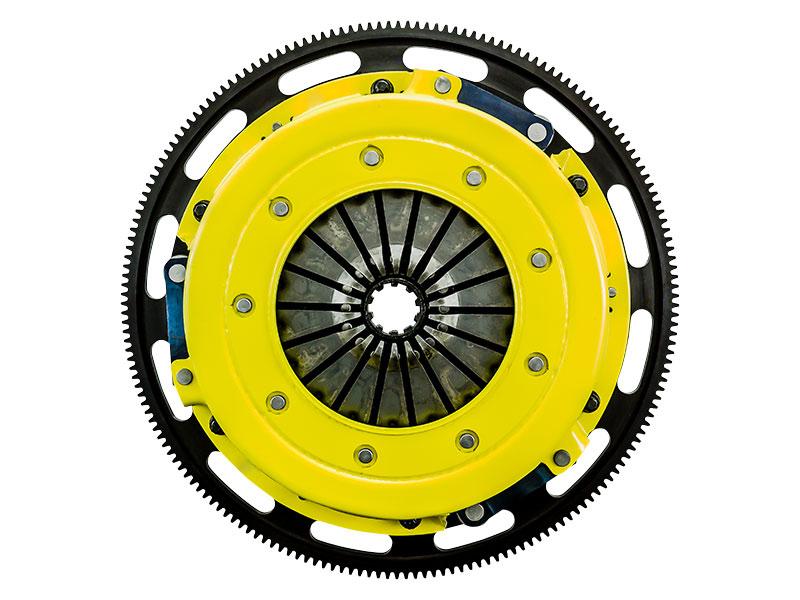

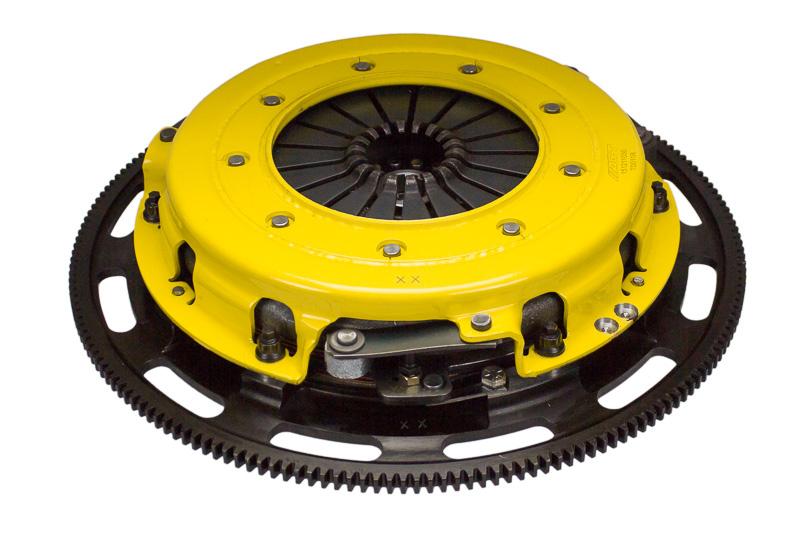

ACT Twin Disc Heavy Duty Race Clutch Kit | 1966 Ford Fairlane (T1R-F06)

ACT Twin Disc Heavy Duty Race Clutch Kit | 1966 Ford Fairlane (T1R-F06)

T1R-F06

Out of stock

$1,580.00 USD
$1,951.00 USD $1,580.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Twin Disc Heavy Duty Race Clutch Kit for the 1966 Ford Fairlane is a high-performance clutch system designed for demanding racing applications. This twin disc kit features twice the number of friction surfaces compared to single disc setups, offering improved wear resistance, higher heat capacity, and extended durability. The proprietary Positive Lift Floater System ensures quiet operation without floater rattle or posts to wear, enhancing reliability during intense driving. All diaphragms undergo an exclusive four-stage heat treating process, which boosts strength and longevity. The clutch provides precise adjustment for disc wear and ensures even disengagement, making it suitable for high-stress environments.

Designed specifically for the 1966 Ford Fairlane, this kit fits models equipped with compatible transmissions and engines. It is intended for racing, high-performance street use, or any application requiring a robust clutch solution. The installation is a direct bolt-on replacement, providing a straightforward upgrade from stock components. The kit includes twin discs, pressure plate, and necessary hardware for installation. Ideal for racers and enthusiasts seeking maximum performance and durability, this clutch kit delivers reliable engagement and consistent power transfer under demanding conditions.

Overview

ACT Twin Disc HD Race Kit

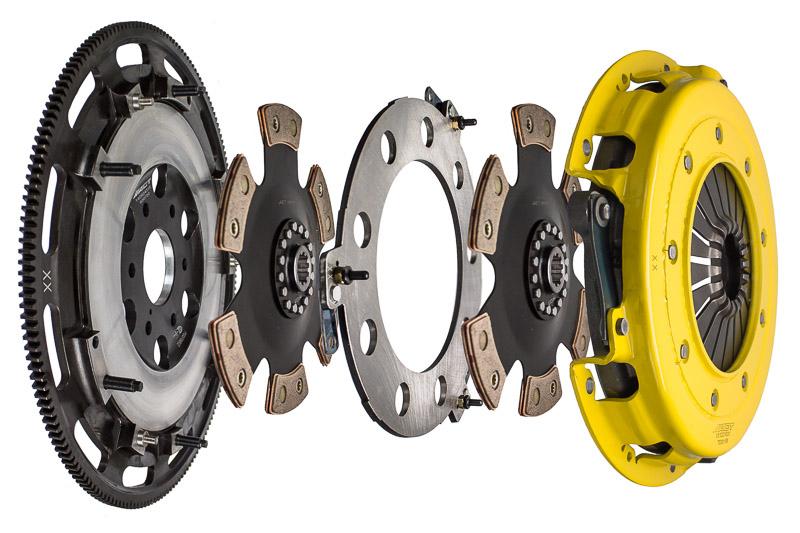

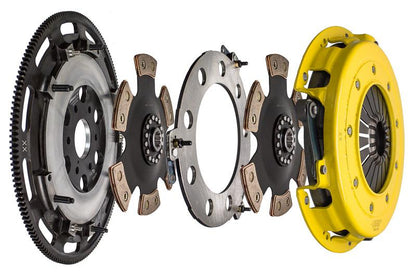

T1R-F06 twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Features

  • Product Weight (lbs.): 47.9
  • SFI: 1.2
  • Torque Capacity (ft/lbs.): 1141
  • Torque Capacity Over OE: 0.96
  • Pressure Plate Type: Heavy Duty
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 267
  • Disc Material: Ceramic
  • Input Spline Quantity: 10
  • Input Shaft Diameter (in.): 1.0625

Applications

  • 1963-1967 Ford Galaxie
  • 1963-1970 Ford Galaxie 500
  • 1967-1969 Ford Ranchero
  • 1967-1969 Ford Mustang
  • 1966-1969 Ford Fairlane
  • 1966-1969 Mercury Comet
  • 1967-1969 Mercury Cougar
  • 1968-1969 Ford Torino
  • 1968-1969 Mercury Montego

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - Clutch Disk
  • 1 - Throwout Bearing
  • 1 - Pilot Bearing
  • 1 - Clutch Alignment Tool

References

Warranty

  • Manufacturer 1 Year Warranty
