ACT Twin Disc Heavy Duty Race Clutch Kit | Ford Fairlane 1966 (T1R-F08)

ACT Twin Disc Heavy Duty Race Clutch Kit | Ford Fairlane 1966 (T1R-F08)

T1R-F08

Out of stock

$1,550.00 USD
$1,913.00 USD $1,550.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Twin Disc Heavy Duty Race Clutch Kit for the 1966 Ford Fairlane is a high-performance clutch system designed for demanding racing applications. Featuring a twin disc configuration, this kit provides twice the surface area of standard single disc clutches, resulting in improved wear resistance, higher heat capacity, and extended longevity. The proprietary Positive Lift Floater System ensures quiet operation without floater rattle or posts to wear, enhancing durability and reliability under intense conditions. All diaphragms undergo an exclusive four-stage heat treating process, optimizing strength and performance. This clutch kit offers precise adjustment for disc wear and ensures smooth, consistent disengagement, making it ideal for high-stress racing environments.

Designed specifically for 1966 Ford Fairlane models, this clutch kit is compatible with vehicles equipped with appropriate transmission setups. It is suitable for street, track, or race use where high torque capacity and durability are required. The kit is a direct replacement for stock components, providing an upgrade in performance without extensive modifications. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade. This clutch system is engineered to withstand the rigors of competitive racing while maintaining reliable operation during daily driving or high-performance events.

Overview

ACT Twin Disc HD Race Kit

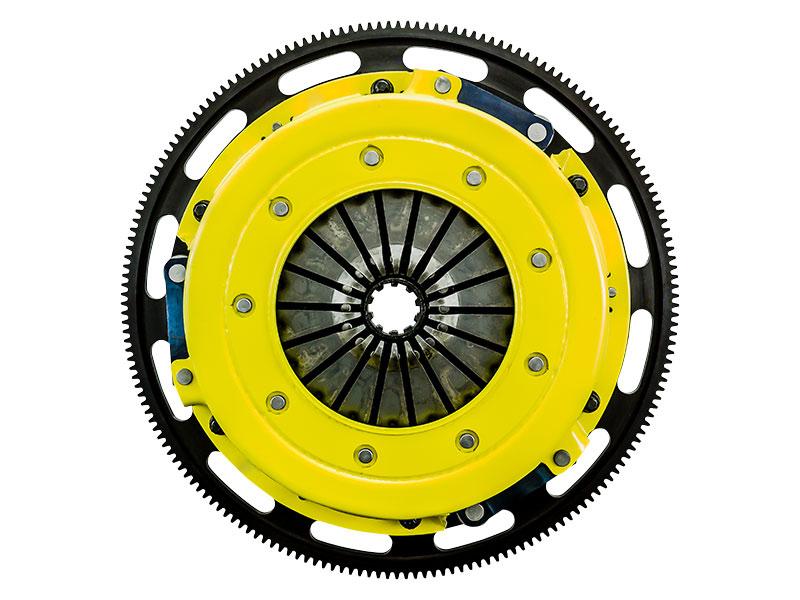

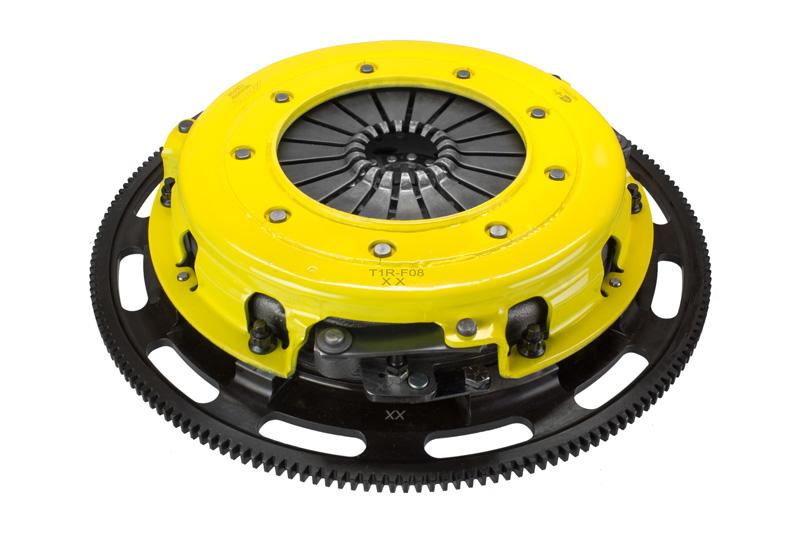

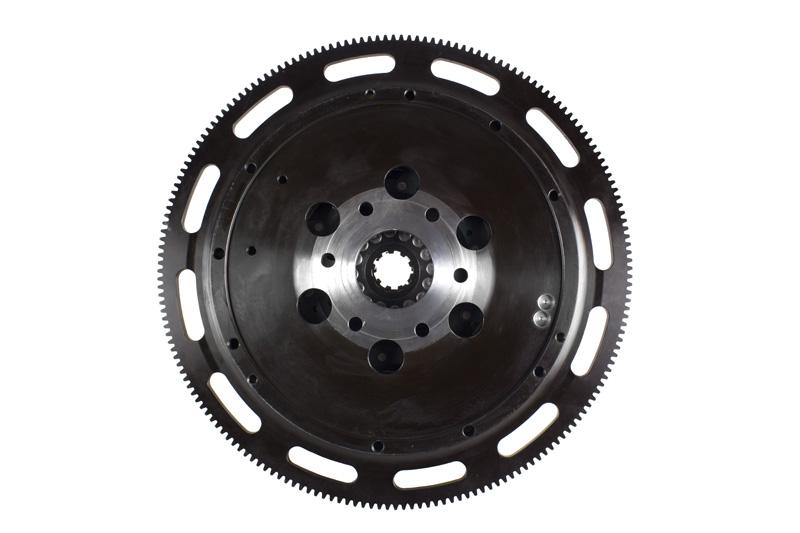

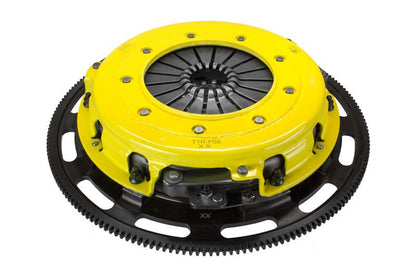

T1R-F08 twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Features

  • Product Weight (lbs.): 47.9
  • SFI: 1.2
  • Torque Capacity (ft/lbs.): 1141
  • Torque Capacity Over OE: 0.96
  • Pressure Plate Type: Heavy Duty
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 267
  • Disc Material: Ceramic
  • Input Spline Quantity: 10
  • Input Shaft Diameter (in.): 1.375

Applications

  • 1963-1967 Ford Galaxie
  • 1966-1969 Ford Fairlane
  • 1965-1968 Ford Galaxie 500
  • 1968-1968 Ford Torino

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - Clutch Disk
  • 1 - Throwout Bearing
  • 1 - Pilot Bearing
  • 1 - Clutch Alignment Tool

References

Warranty

  • Manufacturer 1 Year Warranty
