• ACT Twin Disc Heavy Duty Race Clutch Kit | Ford Fairlane (68) (T1R-F09)
  • ACT Twin Disc Heavy Duty Race Clutch Kit | Ford Fairlane (68) (T1R-F09)
1 2

ACT Twin Disc Heavy Duty Race Clutch Kit | Ford Fairlane (68) (T1R-F09)

ACT Twin Disc Heavy Duty Race Clutch Kit | Ford Fairlane (68) (T1R-F09)

T1R-F09

Out of stock

$1,570.00 USD
$1,938.00 USD $1,570.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Twin Disc Heavy Duty Race Clutch Kit for the Ford Fairlane (68) is a high-performance clutch system designed for demanding racing applications. Featuring a twin disc configuration, this kit provides twice the surface area of traditional single disc setups, resulting in improved wear resistance, higher heat capacity, and extended longevity. The use of a proprietary Positive Lift Floater System ensures quiet operation without floater rattle or posts to wear, enhancing durability and reliability during intense driving. All diaphragms undergo an exclusive four-stage heat treating process, which further boosts strength and performance. This clutch kit is engineered to deliver consistent engagement and smooth operation, making it suitable for high-stress racing environments.

Designed specifically for the 1968 Ford Fairlane, this clutch kit is compatible with models equipped with appropriate engine configurations. It serves as a direct replacement or upgrade for stock clutch systems, providing increased torque capacity and improved heat dissipation. The kit allows for adjustment to compensate for disc wear, ensuring optimal performance over time. Ideal for race cars, street/strip builds, or high-performance street driving, this clutch system is built to withstand the rigors of aggressive driving. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade.

Overview

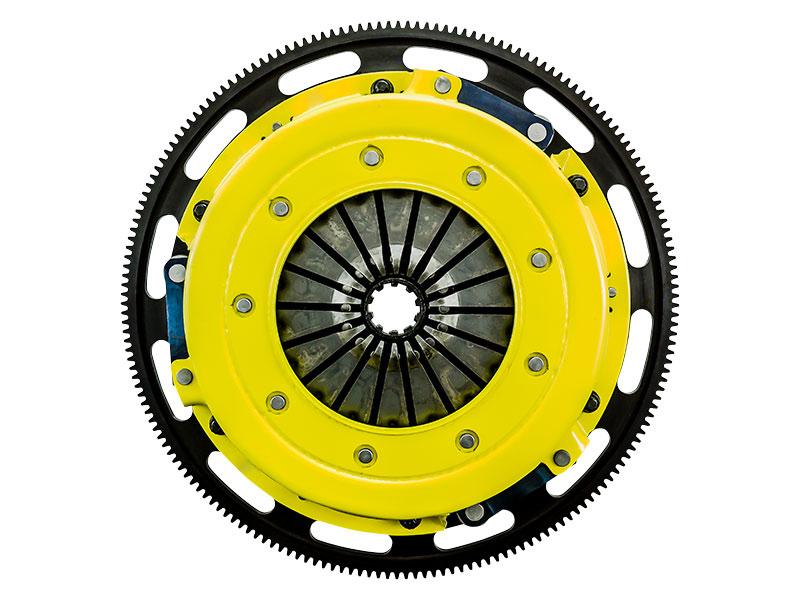

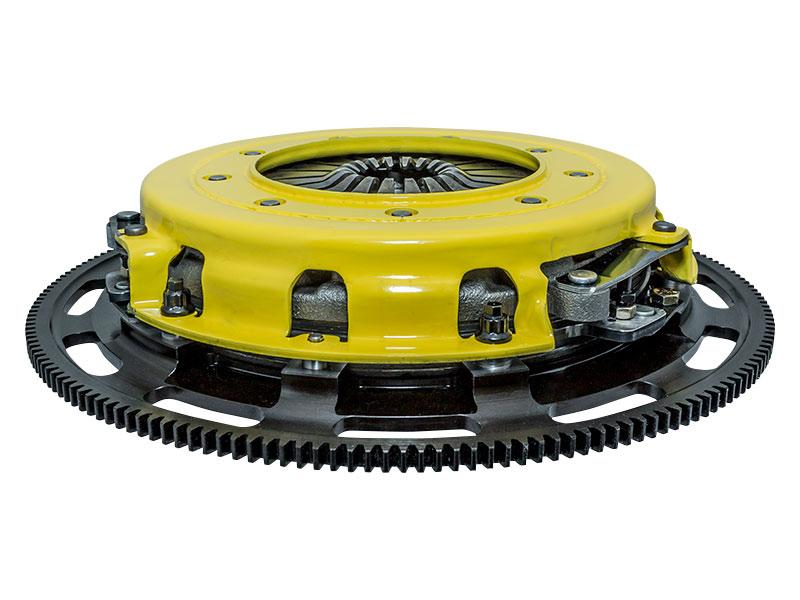

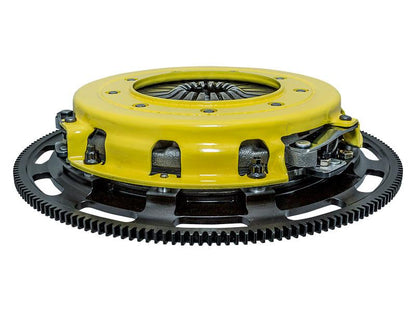

ACT Twin Disc HD Race Kit

T1R-F09 twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Features

  • Product Weight (lbs.): 48.5
  • SFI: 1.2
  • Torque Capacity (ft/lbs.): 1141
  • Torque Capacity Over OE: 0.96
  • Pressure Plate Type: Heavy Duty
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 267
  • Disc Material: Ceramic
  • Input Spline Quantity: 10
  • Input Shaft Diameter (in.): 1.375

Applications

  • 1966-1967 Ford Galaxie
  • 1968-1968 Ford Galaxie 500
  • 1969-1970 Ford Mustang
  • 1968-1969 Ford Torino
  • 1968-1969 Ford Fairlane

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - Clutch Disk
  • 1 - Throwout Bearing
  • 1 - Pilot Bearing
  • 1 - Clutch Alignment Tool

References

Warranty

  • Manufacturer 1 Year Warranty
