ACT Twin Disc Heavy Duty Street Kit | 1997-2015 Chevy Corvette/Camaro (T1S-G05)

Twin Disc HD Street Kit - T1S-G05

T1S-G05 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Features

• Product Weight (lbs.) 45.8
• Torque Capacity (ft/lbs.) 891
• Torque Capacity Over OE 86%
• Input Shaft Diameter (Inches) 1-1/8
• Friction Surface Diameter (mm) 267
• Item Description Twin Disc HD Street Kit
• Friction Surface Diameter (Inches) 10.5
• SFI 1.2
• Disc Type Street Disc
• Tooth Quantity 168
• Spline Count 26

Benefits

• Feel: Light pedal effort, smooth engagement, OE to mild gear rattle
• Life: Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
• Recommended Use: Recommended for high horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 1998-2002 Camaro Z28 / Z28 SS
• 2010-2015 Camaro SS
• 2014-2015 Camaro Z/28
• 1997-2013 Corvette Base
• 2001-2004 Corvette Z06
• 2006-2013 Corvette Z06 / Carbon
• 2010-2013 Corvette Grand Sport
• 1998-2002 Pontiac Firebird Formula / Trans Am
• 2004-2006 Pontiac GTO Base

What's In The Box?

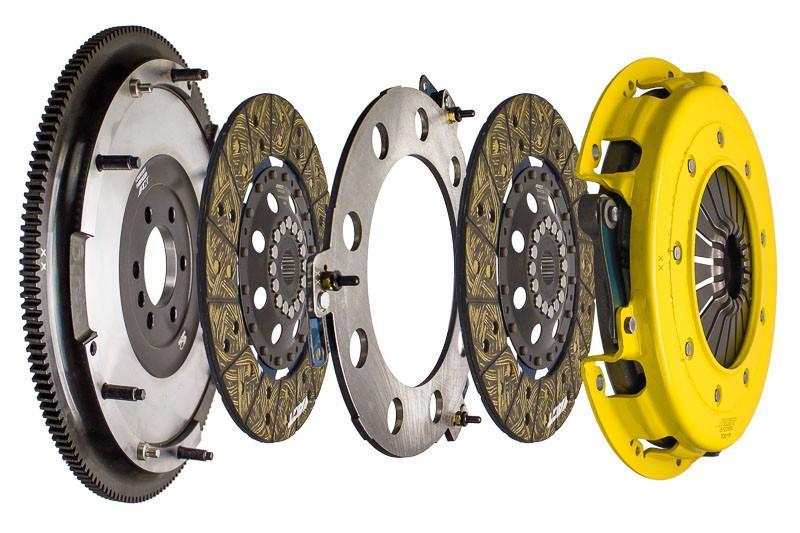

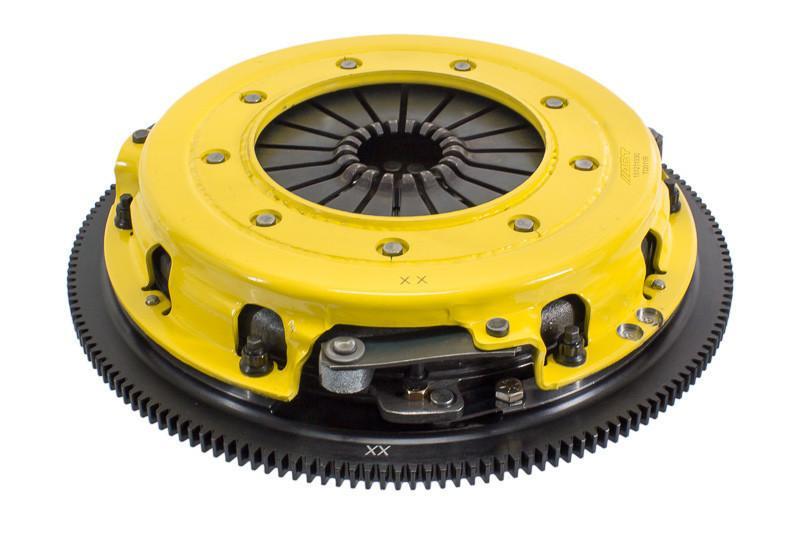

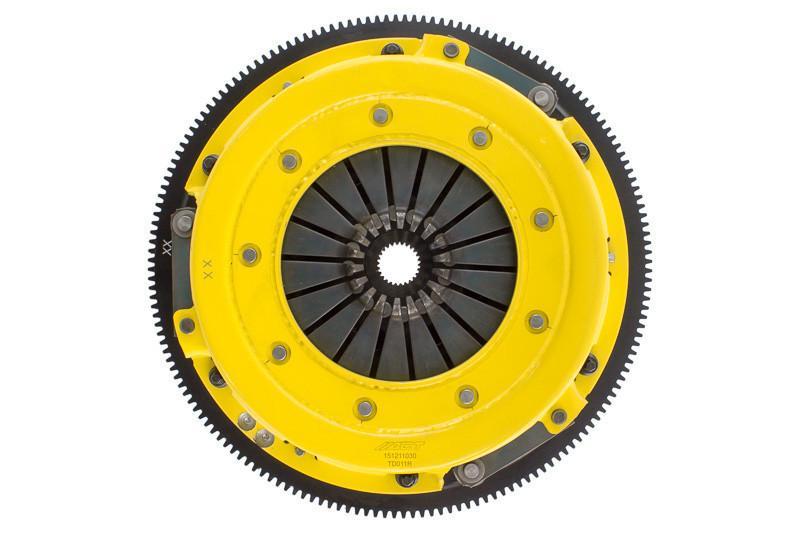

• (1) Twin Disc Clutch Kit

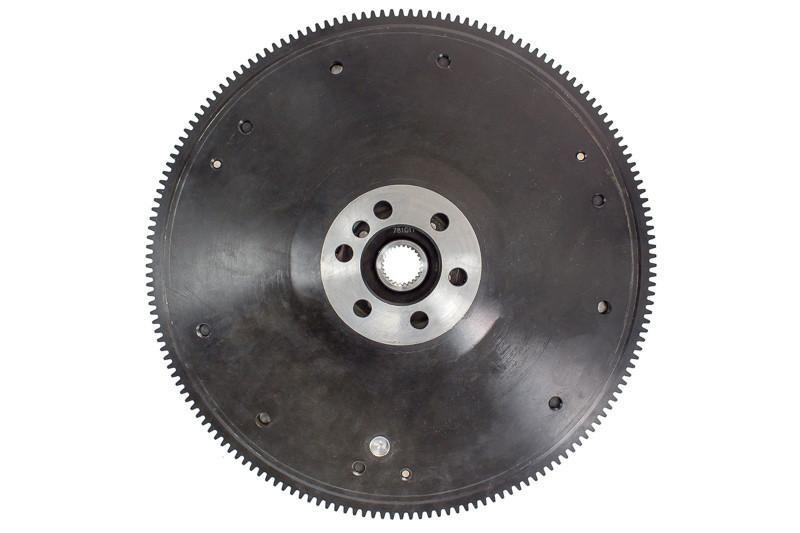

• (1) Streetlite Flywheel

References

• Installation Manual

Warranty

• Manufacturer 12 Month Warranty
