ACT Twin Disc MaXX XT Race Clutch Kit | Ford Fairlane 1966 (T3R-F06)

ACT Twin Disc MaXX XT Race Clutch Kit | Ford Fairlane 1966 (T3R-F06)

T3R-F06

Out of stock

$1,645.00 USD
$2,031.00 USD $1,645.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Twin Disc MaXX XT Race Clutch Kit for the 1966 Ford Fairlane is a high-performance clutch designed for racing and demanding driving conditions. This twin disc kit features twice the number of friction surfaces compared to single disc options, enhancing wear resistance, heat capacity, and overall longevity. The kit incorporates ACT's proprietary Positive Lift Floater System, which ensures quiet operation without floater rattle or posts to wear, providing a reliable and smooth engagement. All diaphragms undergo an exclusive four-stage heat-treating process, resulting in increased durability and consistent performance. The twin disc design allows for precise adjustment to compensate for disc wear and ensures even disengagement, making it suitable for high-stress applications.

This clutch kit is specifically engineered for the 1966 Ford Fairlane, compatible with models equipped with appropriate transmission setups. It is intended for racing, track use, or high-performance street driving where maximum torque capacity and durability are required. Installation involves a direct bolt-on process, offering a straightforward upgrade for enthusiasts seeking improved clutch performance. The kit includes all necessary components for installation, providing a comprehensive solution for performance-oriented drivers. Suitable for applications demanding high heat capacity and long service life, this clutch kit enhances vehicle responsiveness and reliability under extreme conditions.

Overview

ACT Twin Disc MaXX XT Race Kit

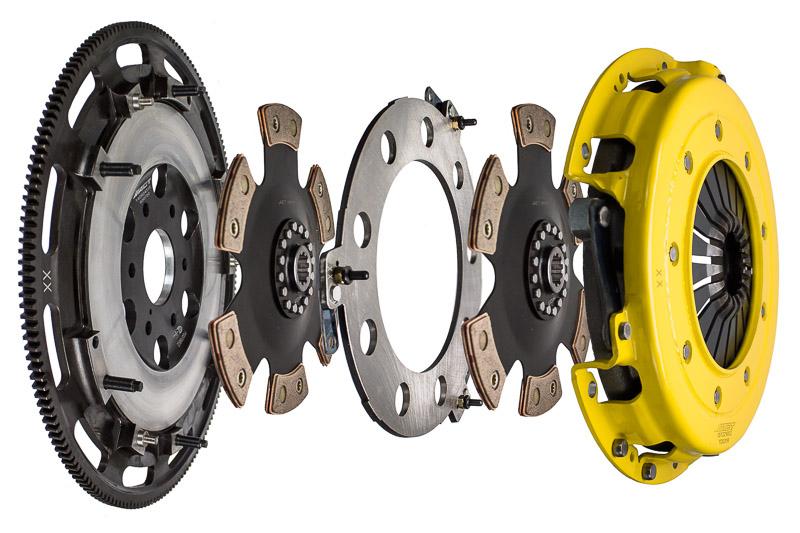

T3R-F06 race, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Features

  • Product Weight (lbs.): 47.6
  • SFI: 1.2
  • Torque Capacity (ft/lbs.): 1496
  • Torque Capacity Over OE: 1.57
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 267
  • Input Spline Quantity: 10
  • Input Shaft Diameter (in.): 1.0625

Applications

  • 1966-1969 Ford Fairlane
  • 1968-1969 Ford Torino
  • 1967-1969 Mercury Cougar
  • 1963-1967 Ford Galaxie
  • 1963-1970 Ford Galaxie 500
  • 1966-1969 Mercury Comet
  • 1967-1969 Ford Ranchero
  • 1967-1969 Ford Mustang
  • 1968-1969 Mercury Montego

What's In The Box?

  • 1 - Heavy Duty Pressure Plate
  • 1 - Clutch Disk
  • 1 - Throwout Bearing
  • 1 - Pilot Bearing
  • 1 - Clutch Alignment Tool

References

Warranty

  • Manufacturer 1 Year Warranty
