ACT Twin Disc XT Race Kit | Multiple Fitments (T2R-F09)

ACT Twin Disc XT Race Kit

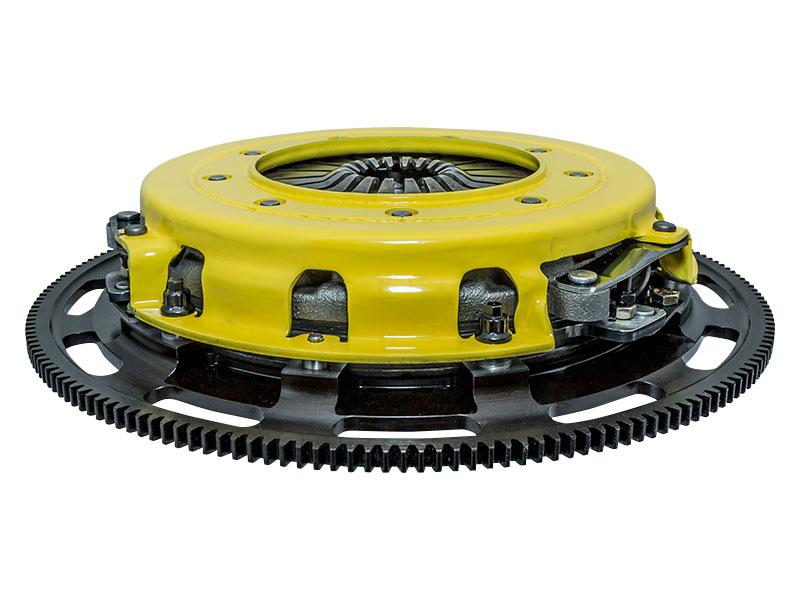

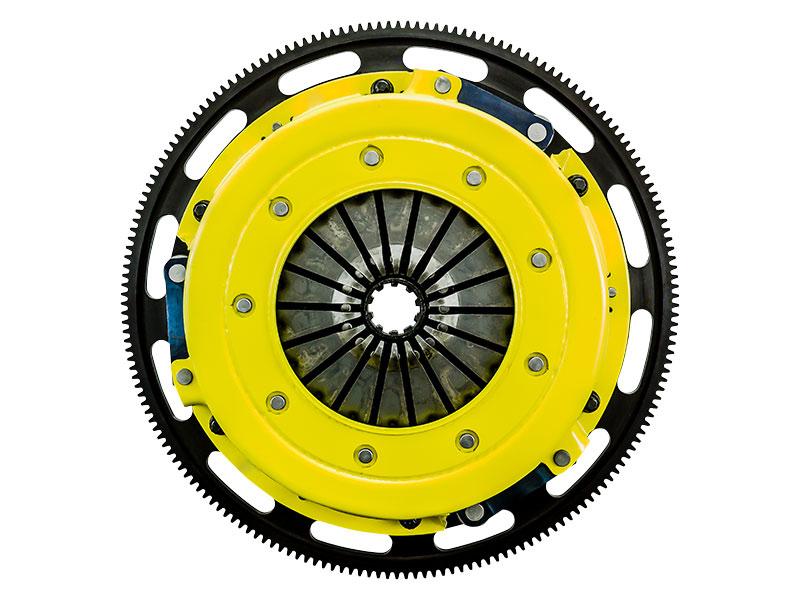

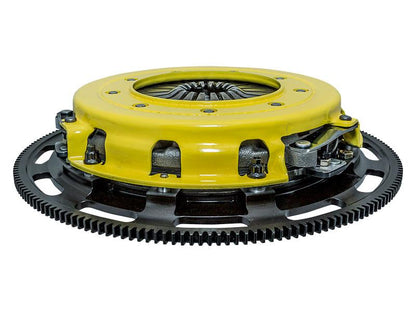

T2R-F09 race, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Features

• Product Weight (lbs.): 48.3
• SFI: 1.2
• Torque Capacity (ft/lbs.): 1263
• Torque Capacity Over OE: 1.17
• Clutch Disc Diameter (in.): 10.5
• Clutch Disc Diameter (mm): 267
• Input Spline Quantity: 10
• Input Shaft Diameter (in.): 1.375

Applications

• 1968-1969 Ford Torino
• 1968-1968 Ford Galaxie 500
• 1969-1970 Ford Mustang
• 1966-1967 Ford Galaxie
• 1968-1969 Ford Fairlane

What's In The Box?

• 1 - Heavy Duty Pressure Plate
• 1 - Clutch Disk
• 1 - Throwout Bearing
• 1 - Pilot Bearing
• 1 - Clutch Alignment Tool

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
