• ACT XT-M/Race Rigid 4 Pad Clutch Kit | Mazda RX-7 (93-95) (ZX6-XTR4)
1 1

ACT XT-M/Race Rigid 4 Pad Clutch Kit | Mazda RX-7 (93-95) (ZX6-XTR4)

ACT XT-M/Race Rigid 4 Pad Clutch Kit | Mazda RX-7 (93-95) (ZX6-XTR4)

ZX6-XTR4

Out of stock

$856.00 USD
$1,057.00 USD $856.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT-M/Race Rigid 4 Pad Clutch Kit for the Mazda RX-7 (93-95) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The rigid race discs incorporate high-quality ceramic friction materials, providing excellent grip and heat resistance. Built for racing and high-performance applications, this clutch kit delivers reliable engagement and maximum power transfer, making it suitable for track use or aggressive street driving.

Designed specifically for 1993 to 1995 Mazda RX-7 models, this clutch kit is a direct replacement for stock components, ensuring a straightforward installation. It is compatible with vehicles equipped with the appropriate engine and chassis configurations, offering an upgrade for drivers seeking enhanced performance and durability. The kit includes all necessary components for installation, providing a comprehensive solution for high-stress driving scenarios. Ideal for racing, track days, or spirited street driving, this clutch kit enhances vehicle responsiveness and longevity under demanding conditions.

Overview

ACT XT-M/Race Rigid 4 Pad Kit

ZX6-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Features

  • Product Weight (lbs.): 15.2
  • Torque Capacity (ft/lbs.): 575
  • Torque Capacity Over OE: 1.03
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1993-1995 Mazda RX-7

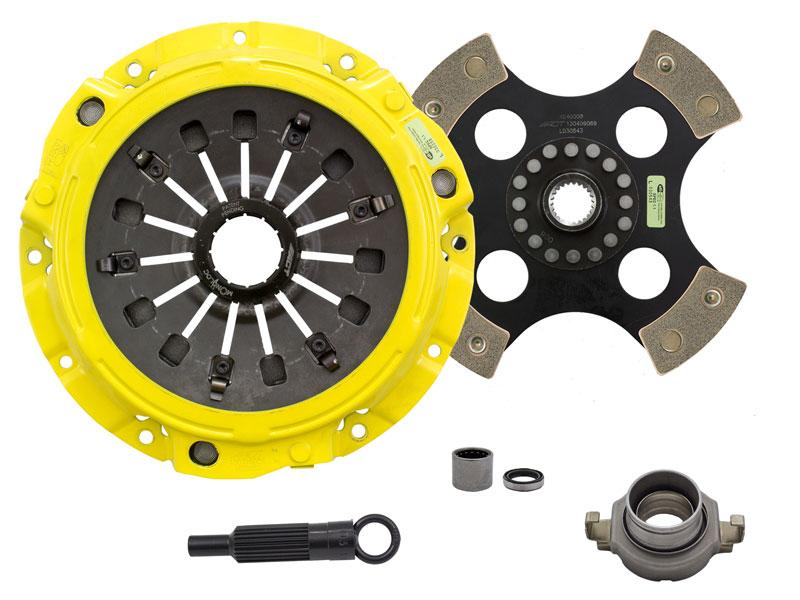

What's In The Box?

  • Clutch Friction Disc (4240008)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ028X)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB600)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
