ACT Extreme Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (93-95) (ZX6-XTG4)

ACT Extreme Race Sprung 4 Pad Clutch Kit | Mazda RX-7 (93-95) (ZX6-XTG4)

ZX6-XTG4

In stock

$911.00 USD
$1,125.00 USD $911.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Sprung 4 Pad Clutch Kit for the Mazda RX-7 (93-95) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced durability for aggressive street and race applications. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The inclusion of a four-pad spring-centered race disc ensures proper engagement and smooth operation under high-stress conditions. Constructed with precision cover stampings, the clutch components deliver rigidity and consistency, making it suitable for high-horsepower setups and spirited driving.

This clutch kit is specifically engineered for 1993-1995 Mazda RX-7 models, compatible with the 13B rotary engine. It is a direct replacement upgrade for stock clutch components, offering increased holding capacity and improved heat dissipation. Ideal for track days, street performance, or competitive racing, this kit provides reliable engagement and pedal feel. Installation involves bolt-on replacement of existing clutch parts, with all necessary components included. Designed for high-performance use, it ensures optimal power transfer and durability under demanding conditions, making it a preferred choice for enthusiasts seeking maximum clutch performance.

Overview

ACT XT-M/Race Sprung 4 Pad Kit

ZX6-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Features

  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 16.5
  • Torque Capacity (ft/lbs.): 575
  • Torque Capacity Over OE: 1.03
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic

Applications

  • 1993-1995 Mazda RX-7

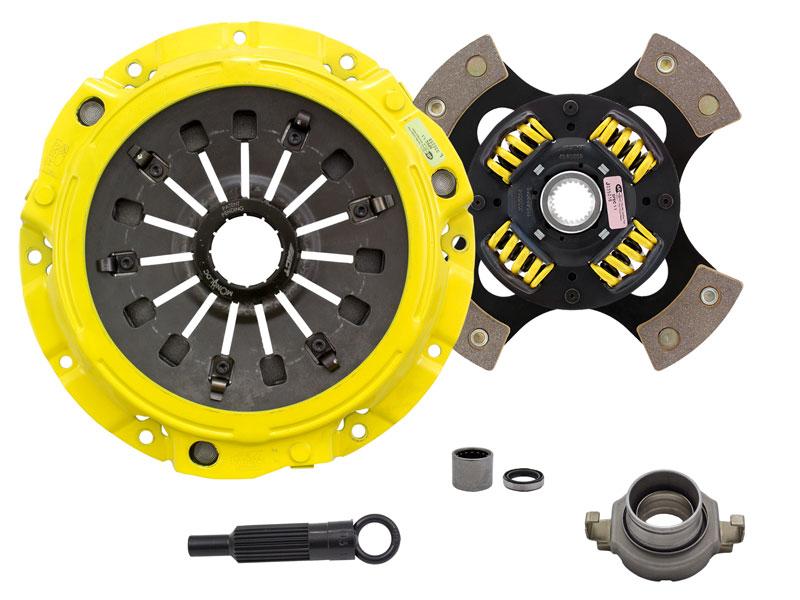

What's In The Box?

  • Clutch Friction Disc (4240508)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ028X)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB600)

References

Warranty

  • Manufacturer 1 Year Warranty
