ACT Extreme Off-Road Race Sprung 6 Pad Clutch Kit | Toyota Tacoma (95-04) (TA1-XTG6)

ACT Extreme Off-Road Race Sprung 6 Pad Clutch Kit | Toyota Tacoma (95-04) (TA1-XTG6)

TA1-XTG6

In stock

$667.00 USD
$823.00 USD $667.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Off-Road Race Sprung 6 Pad Clutch Kit for Toyota Tacoma (95-04) is a high-performance clutch system designed to handle demanding off-road racing conditions. Featuring ACT's powerful Xtreme pressure plate and a spring center 4-pad race disc, this kit delivers ultra-high torque capacity, aggressive engagement, and quiet operation. The clutch components are built with durability in mind, utilizing ACT’s exclusive diaphragm design that significantly increases clamp load, reduces deflection, and extends clutch life. All diaphragms undergo a rigorous four-stage heat-treating process, ensuring exceptional performance and resilience under extreme conditions. This clutch kit is engineered to provide maximum toughness and reliability for off-road enthusiasts seeking a robust upgrade.

Designed specifically for 1995 to 2004 Toyota Tacoma models, this clutch kit is a direct replacement for stock components and is suitable for off-road racing, heavy-duty use, and high-torque applications. It is compatible with vehicles equipped with the appropriate engine configurations and is intended for aggressive driving scenarios that demand increased durability and performance. Installation involves replacing the existing clutch with this high-capacity assembly, offering a straightforward bolt-on upgrade. The kit includes the pressure plate, race disc, and necessary components to ensure a comprehensive upgrade for off-road and performance-oriented driving.

Overview

ACT XT-O/Race Sprung 6 Pad Kit

TA1-XTG6 kit features ACT's powerful Xtreme pressure plate and spring center 4 pad race disc delivering ultra-high torque capacity, aggressive engagement, quiet operation and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design dramatically increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s spring center 4 pad race discs boast quality parts throughout, with robust spring center sections to absorb driveline shock and premium ceramic friction materials to hold power even under the most abusive conditions.

Features

  • Product Weight (lbs.): 17.3
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.07
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1995-2004 Toyota Tacoma

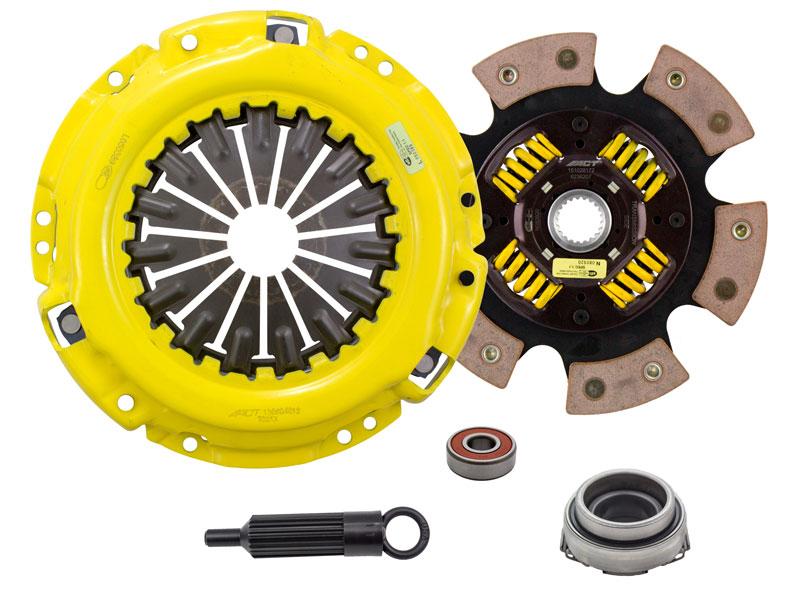

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB444)
  • Clutch Pressure Plate (T021X)

References

Warranty

  • Manufacturer 1 Year Warranty
