• ACT Extreme Off-Road Race Sprung 6 Pad Clutch Kit | Toyota 4Runner 1987 (T43-XTG6)
1 1

ACT Extreme Off-Road Race Sprung 6 Pad Clutch Kit | Toyota 4Runner 1987 (T43-XTG6)

ACT Extreme Off-Road Race Sprung 6 Pad Clutch Kit | Toyota 4Runner 1987 (T43-XTG6)

T43-XTG6

In stock

$658.00 USD
$812.00 USD $658.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Off-Road Race Sprung 6 Pad Clutch Kit for the Toyota 4Runner is a high-performance clutch system designed for demanding off-road racing applications. It features ACT's powerful Xtreme pressure plate combined with a spring center 4-pad race disc, providing ultra-high torque capacity and aggressive engagement. The kit is engineered for durability and quiet operation, making it suitable for extreme conditions. The precision pressure plate utilizes an exclusive diaphragm design that significantly increases clamp load, reduces deflection, and enhances clutch longevity. All diaphragms undergo a rigorous four-stage heat-treating process, ensuring exceptional performance and resilience under intense use. This clutch kit delivers increased toughness and reliability, ideal for off-road enthusiasts seeking maximum performance.

Designed for the 1987 Toyota 4Runner, this clutch kit is a direct replacement upgrade for off-road racing and high-torque applications. It is compatible with models equipped with the T43 transmission and is intended for use in demanding off-road environments where durability and high torque capacity are essential. The kit includes the clutch pressure plate, race disc, and necessary components for installation. It is suitable for off-road racing, trail driving, and other extreme off-road activities, providing a reliable and aggressive clutch engagement. Proper installation ensures optimal performance and longevity in challenging off-road conditions.

Overview

ACT XT-O/Race Sprung 6 Pad Kit

T43-XTG6 kit features ACT's powerful Xtreme pressure plate and spring center 4 pad race disc delivering ultra-high torque capacity, aggressive engagement, quiet operation and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design dramatically increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s spring center 4 pad race discs boast quality parts throughout, with robust spring center sections to absorb driveline shock and premium ceramic friction materials to hold power even under the most abusive conditions.

Features

  • Product Weight (lbs.): 17.3
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.07
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1987-1995 Toyota Pickup
  • 1987-1995 Toyota 4Runner

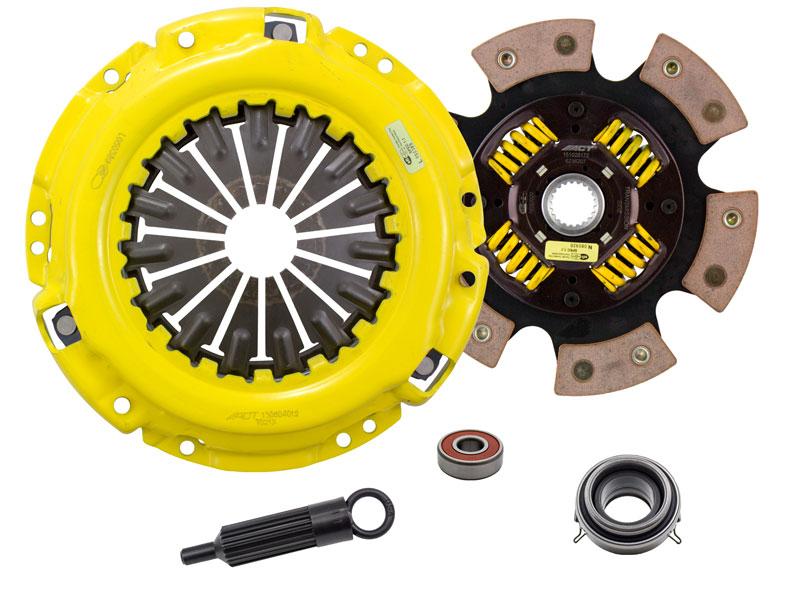

What's In The Box?

  • Clutch Friction Disc (6236207)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB445)
  • Clutch Pressure Plate (T021X)

References

Warranty

  • Manufacturer 1 Year Warranty
