ACT XT/Perf Street Rigid Kit | Multiple Fitments (HA3-XTSD)

ACT XT/Perf Street Rigid Kit

HA3-XTSD kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability.

Features

• Product Weight (lbs.): 12.3
• Torque Capacity (ft/lbs.): 385
• Torque Capacity Over OE: 0.95
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8
• Clutch Disc Diameter (mm): 224
• Disc Material: Organic
• Input Spline Quantity: 24
• Input Shaft Diameter (in.): 1.03125
• Alignment Tool Included: Yes

Applications

• 1990-2002 Honda Accord
• 1992-2001 Honda Prelude
• 1997-1999 Acura CL

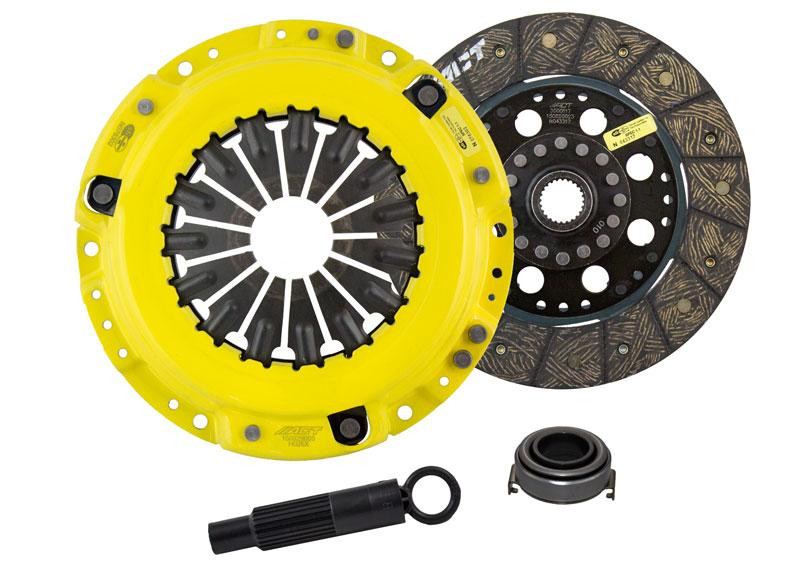

What's In The Box?

• Clutch Friction Disc (3000117)
• Clutch Alignment Tool (AT58)
• Clutch Pressure Plate (H026X)
• Clutch Release Bearing (RB817)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
