ACT XT/Perf Street Sprung Kit | Multiple Fitments (AA6-XTSS)

ACT XT/Perf Street Sprung Kit

AA6-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Features

• Flywheel Mounting Hole Quantity: 8
• Flywheel Tooth Quantity: 135
• Flywheel Type: Streetlite
• Part Fitment Requirement: Conversion kit. Must use ACT flywheel (included in kit).
• Product Weight (lbs.): 30.6
• Torque Capacity (ft/lbs.): 515
• Torque Capacity Over OE: 0.42
• Flywheel Included: Yes
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 9.4
• Clutch Disc Diameter (mm): 240
• Disc Material: Organic
• Input Spline Quantity: 23
• Input Shaft Diameter (in.): 0.9375
• Alignment Tool Included: Yes

Applications

• 2000-2004 Audi A6 Quattro
• 2001-2005 Audi Allroad Quattro
• 2000-2002 Audi S4

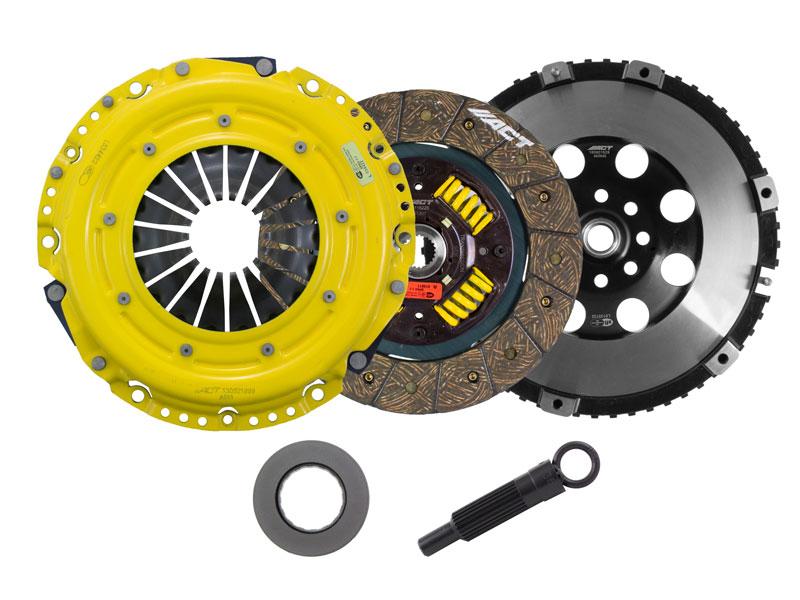

What's In The Box?

• Clutch Friction Disc (3001207)
• Clutch Flywheel (600940)
• Clutch Pressure Plate (A011)
• Clutch Alignment Tool (AT36)
• Clutch Pilot Bearing (PB1009)
• Clutch Release Bearing (RB1301)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
