• ACT Extreme Performance Street Sprung Clutch Kit | Nissan 200SX (96) (NX9-XTSS)
1 1

ACT Extreme Performance Street Sprung Clutch Kit | Nissan 200SX (96) (NX9-XTSS)

ACT Extreme Performance Street Sprung Clutch Kit | Nissan 200SX (96) (NX9-XTSS)

NX9-XTSS

In stock

$526.00 USD
$649.00 USD $526.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Performance Street Sprung Clutch Kit for the Nissan 200SX (96) features a high-performance clutch system designed for demanding driving conditions. The kit includes an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. All diaphragms undergo a four-stage heat-treating process, ensuring durability and consistent performance under stress. The clutch discs are crafted with premium materials to deliver reliable grip and smooth engagement, making this kit ideal for street-driven vehicles that require enhanced performance and longevity. Constructed with precision cover stampings, the components provide rigidity and stability during operation, supporting aggressive driving styles and increased power handling.

This clutch kit is specifically designed for the Nissan 200SX (96), compatible with models equipped with suitable engine configurations. It serves as a direct replacement or upgrade for stock clutch systems, offering improved clamp force and durability for daily driving or spirited street use. Installation involves bolt-on replacement of the existing clutch components, with all necessary parts included in the kit. The ACT Extreme Performance Street Sprung Clutch Kit is engineered to meet the demands of performance enthusiasts seeking increased holding capacity and reliability without sacrificing drivability. It is suitable for drivers looking to enhance their vehicle’s clutch performance for street and light performance applications.

Overview

ACT XT/Perf Street Sprung Kit

NX9-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Features

  • Product Weight (lbs.): 10.8
  • Torque Capacity (ft/lbs.): 320
  • Torque Capacity Over OE: 0.84
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Organic
  • Input Spline Quantity: 18
  • Input Shaft Diameter (in.): 0.8125
  • Alignment Tool Included: Yes

Applications

  • 1995-1998 Nissan 200SX
  • 1991-2006 Nissan Sentra
  • 1991-1993 Nissan NX
  • 1991-2002 Infiniti G20

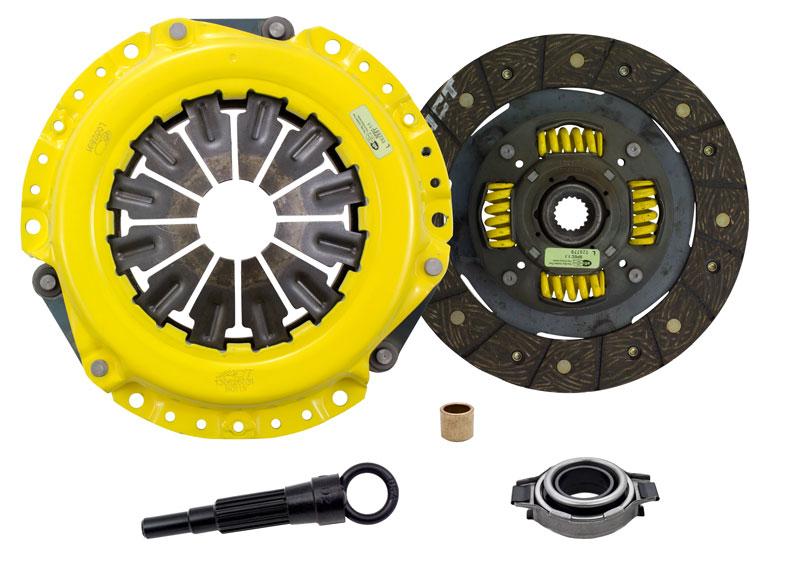

What's In The Box?

  • Clutch Friction Disc (3000410)
  • Clutch Alignment Tool (AT68)
  • Clutch Pressure Plate (N011X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB433)

References

Warranty

  • Manufacturer 1 Year Warranty
