ACT XT/Perf Street Sprung Kit | Multiple Fitments (TC2-XTSS)

ACT XT/Perf Street Sprung Kit

TC2-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Features

• Product Weight (lbs.): 12.8
• Torque Capacity (ft/lbs.): 310
• Torque Capacity Over OE: 0.74
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.3
• Clutch Disc Diameter (mm): 212
• Disc Material: Organic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 0.9375
• Alignment Tool Included: Yes

Applications

• 1991-1997 Geo Prizm
• 1991-2005 Toyota Celica
• 1992-2013 Toyota Corolla
• 2003-2014 Toyota Matrix
• 2000-2005 Toyota MR2 Spyder
• 2003-2008 Pontiac Vibe

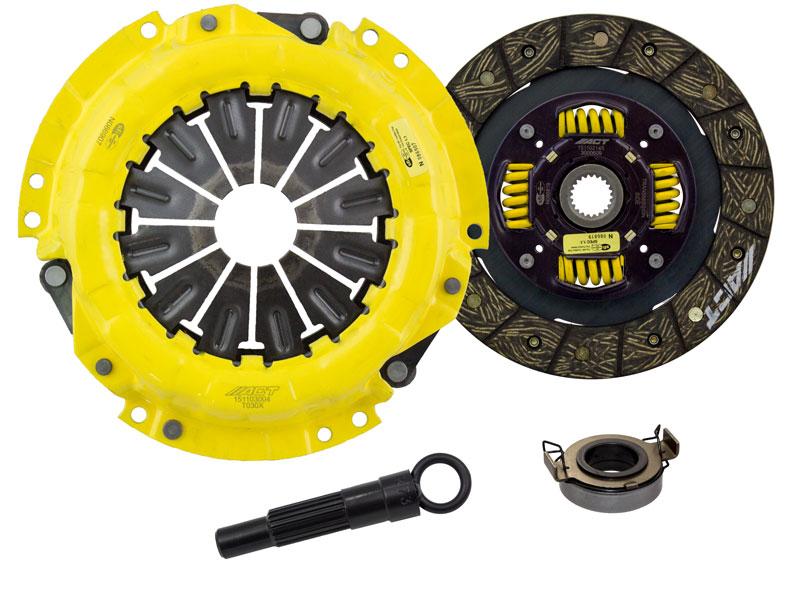

What's In The Box?

• Clutch Friction Disc (3000609)
• Clutch Alignment Tool (ATK73)
• Clutch Release Bearing (RB840)
• Clutch Pressure Plate (T030X)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
