• ACT Extreme Performance Street Sprung Clutch Kit | Toyota 4Runner (87) (TS1-XTSS)
1 1

ACT Extreme Performance Street Sprung Clutch Kit | Toyota 4Runner (87) (TS1-XTSS)

ACT Extreme Performance Street Sprung Clutch Kit | Toyota 4Runner (87) (TS1-XTSS)

TS1-XTSS

In stock

$589.00 USD
$727.00 USD $589.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Performance Street Sprung Clutch Kit for the Toyota 4Runner (87) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life through an exclusive diaphragm design. The pressure plates undergo a four-stage heat-treating process, ensuring durability and consistent performance under stress. The included performance street discs are crafted with premium materials to deliver reliable engagement, smooth operation, and increased holding capacity. This clutch kit is engineered to provide a balance of street usability and aggressive performance, making it suitable for drivers seeking enhanced power transfer and longevity.

Designed for the 1987 Toyota 4Runner equipped with compatible engines, this clutch kit serves as a direct replacement for stock components. It is ideal for street-driven vehicles that require improved clutch performance, especially under high torque loads or spirited driving. The installation involves bolt-on replacement of the existing clutch assembly, with all necessary components included for a straightforward upgrade. This kit is suitable for enthusiasts looking to maximize their vehicle’s clutch capacity without sacrificing daily drivability, ensuring reliable operation during aggressive driving or extended use.

Overview

ACT XT/Perf Street Sprung Kit

TS1-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Features

  • Product Weight (lbs.): 16.7
  • Torque Capacity (ft/lbs.): 350
  • Torque Capacity Over OE: 0.62
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Organic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1984-1987 Toyota Cressida
  • 1985-1987 Toyota 4Runner
  • 1986-1988 Toyota Supra
  • 1982-1985 Toyota Celica
  • 1985-1987 Toyota Pickup

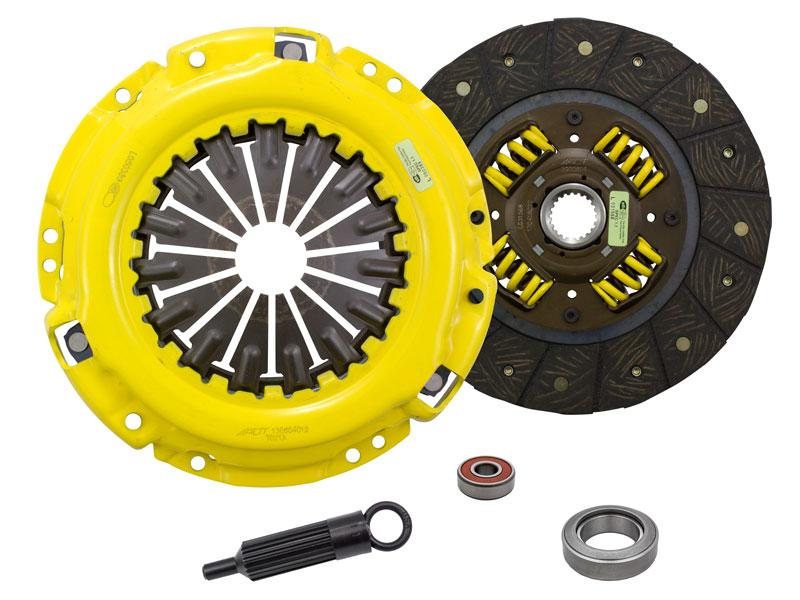

What's In The Box?

  • Clutch Friction Disc (3000604)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T021X)

References

Warranty

  • Manufacturer 1 Year Warranty
