ACT XT/Perf Street Sprung Kit | Multiple Fitments (Z66-XTSS)

ACT XT/Perf Street Sprung Kit

Z66-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Features

• Product Weight (lbs.): 13.8
• Torque Capacity (ft/lbs.): 340
• Torque Capacity Over OE: 0.79
• Pilot Bushing Included: Yes
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8
• Clutch Disc Diameter (mm): 224
• Disc Material: Organic
• Input Spline Quantity: 22
• Input Shaft Diameter (in.): 0.9375
• Alignment Tool Included: Yes

Applications

• 1993-1997 Ford Probe
• 1993-2002 Mazda 626
• 2001-2003 Mazda Protege
• 2002-2003 Mazda Protege5
• 1993-1997 Mazda MX-6

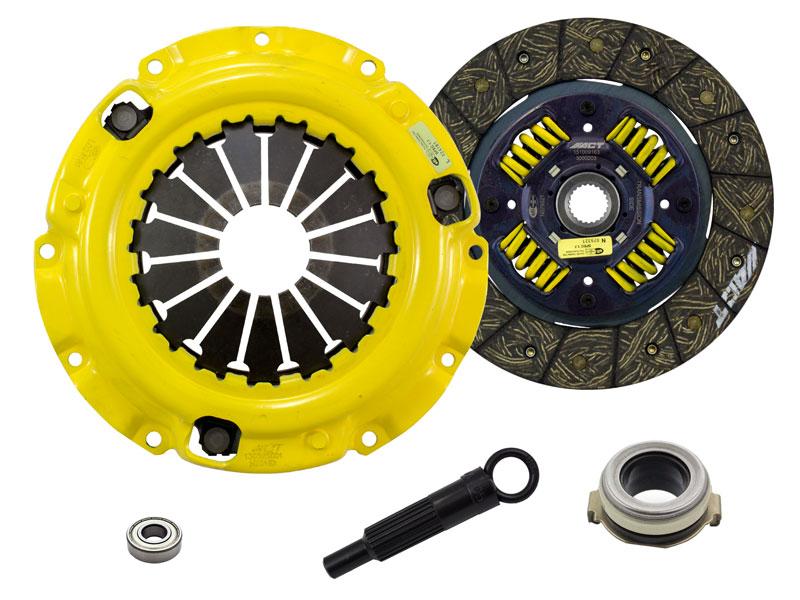

What's In The Box?

• Clutch Friction Disc (3000203)
• Clutch Alignment Tool (AT05)
• Clutch Pressure Plate (MZ018X)
• Clutch Pilot Bearing (PB1005)
• Clutch Release Bearing (RB110)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
