• ACT Extreme Race Rigid 4 Pad Clutch Kit | Honda Civic (92-05) / Del Sol (93-97) / Acura EL (97-05) (HC5-XTR4)
1 1

ACT XTR4 Rigid 4-Pad Clutch Kit | Civic/Del Sol/EL (92-05) (HC5-XTR4)

ACT XTR4 Rigid 4-Pad Clutch Kit | Civic/Del Sol/EL (92-05) (HC5-XTR4)

HC5-XTR4

In stock

$511.00 USD
$631.00 USD $511.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XTR4 Rigid 4-Pad Clutch Kit is a high-performance upgrade designed for Honda Civic, Del Sol, and Acura EL models from 1992 to 2005. This kit combines ACT's Xtreme pressure plate with a ceramic 4-pad rigid race disc, delivering exceptional clamping force and durability for aggressive driving and racing applications. The Xtreme pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. All diaphragms undergo a four-stage heat-treating process, ensuring consistent performance and resilience under demanding conditions. The kit's components are engineered for maximum performance, providing a reliable and responsive clutch experience with improved holding capacity and heat resistance, making it ideal for track days, spirited driving, or heavy-duty use.

Designed specifically for 1992-2005 Honda Civic, Del Sol, and Acura EL models, this clutch kit is a direct replacement for stock components, offering a bolt-on installation for compatible vehicles. It is suitable for street, track, and performance driving, providing increased torque capacity and pedal feel. The kit includes the Xtreme pressure plate and ceramic 4-pad rigid race disc, with all parts engineered to fit seamlessly into the factory clutch system. No additional modifications are typically required, making it a straightforward upgrade for enthusiasts seeking enhanced clutch performance and longevity. Compatibility notes indicate it is optimized for vehicles with upgraded or high-performance engine setups, ensuring maximum benefit from the kit's robust design and materials.

Overview

92-05 Honda Civic / 93-97 Del Sol & 97-05 Acura EL Xtreme Race Clutch Kit by ACT

This kit features ACT's Xtreme pressure plate paired with their ceramic 4-pad rigid race disc.

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Feel: Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design; rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 380 ft/lbs
  • Torque Capacity (% Over OE): 133%

Applications

  • 1992 - 2005 Honda Civic
  • 1992 - 1998 Honda Civic Si
  • 1993 - 1997 Honda Civic Del Sol
  • 1997 - 2005 Acura EL

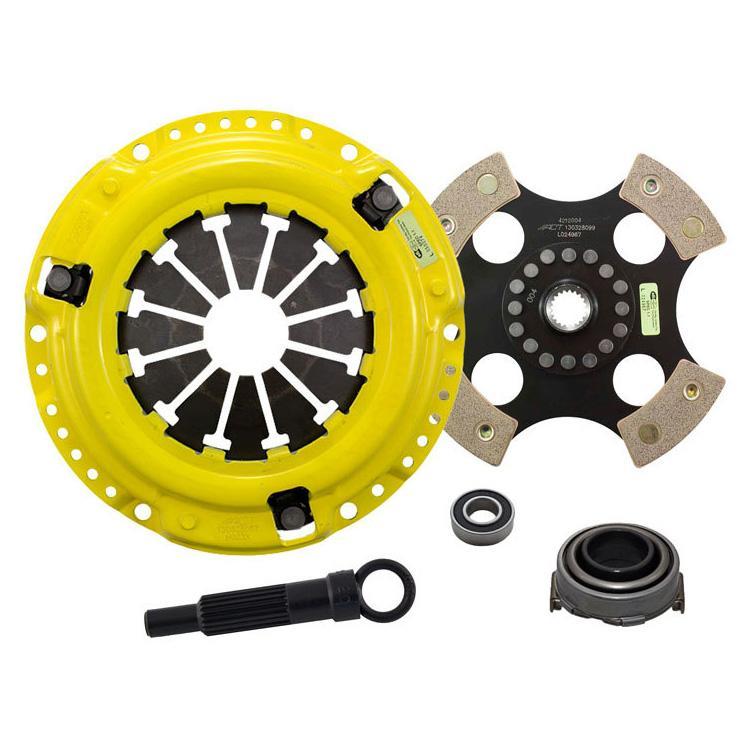

What's In The Box?

  • 1 - Xtreme Pressure Plate
  • 1 - Rigid 4-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
