• ACT Extreme Race Rigid 6 Pad Clutch Kit | Honda Civic (92-05) / Del Sol (93-97) / Acura EL (97-05) (HC5-XTR6)
1 1

ACT XTR6 Rigid 6-Pad Clutch Kit | Civic/Del Sol/EL (92-05) (HC5-XTR6)

ACT XTR6 Rigid 6-Pad Clutch Kit | Civic/Del Sol/EL (92-05) (HC5-XTR6)

HC5-XTR6

Out of stock

$537.00 USD
$663.00 USD $537.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XTR6 Rigid 6-Pad Clutch Kit is a high-performance upgrade designed for Honda Civic, Del Sol, and Acura EL models from 1992 to 2005. This kit combines ACT's Xtreme pressure plate with a ceramic 6-pad rigid race disc, delivering exceptional holding capacity and durability for aggressive driving and racing applications. The pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and enhances overall clutch life. Each component undergoes a four-stage heat-treating process to ensure maximum performance and longevity, while the precision cover stampings provide added rigidity and consistency. This combination results in a clutch system capable of handling high horsepower and torque levels, making it ideal for track use or spirited street driving.

Designed specifically for 1992-2005 Honda Civic, Del Sol, and Acura EL models, this clutch kit is a direct replacement for stock components, offering a reliable upgrade for performance enthusiasts. It is suitable for vehicles equipped with stock or mildly modified engines that require increased clamping force and heat resistance. The kit is intended for use in racing, track days, or aggressive street driving, providing improved engagement and pedal feel. Installation involves bolt-on replacement of the stock clutch components, and the kit includes the pressure plate and race disc. Compatibility notes indicate that this clutch is optimized for high-performance applications, ensuring maximum grip and durability under demanding conditions.

Overview

92-05 Honda Civic / 93-97 Del Sol & 97-05 Acura EL Xtreme Race Clutch Kit by ACT

This kit features ACT's Xtreme pressure plate paired with their ceramic 6-pad rigid race disc.

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Feel: Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design; rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 380 ft/lbs
  • Torque Capacity (% Over OE): 133%

Applications

  • 1992 - 2005 Honda Civic
  • 1992 - 1998 Honda Civic Si
  • 1993 - 1997 Honda Civic Del Sol
  • 1997 - 2005 Acura EL

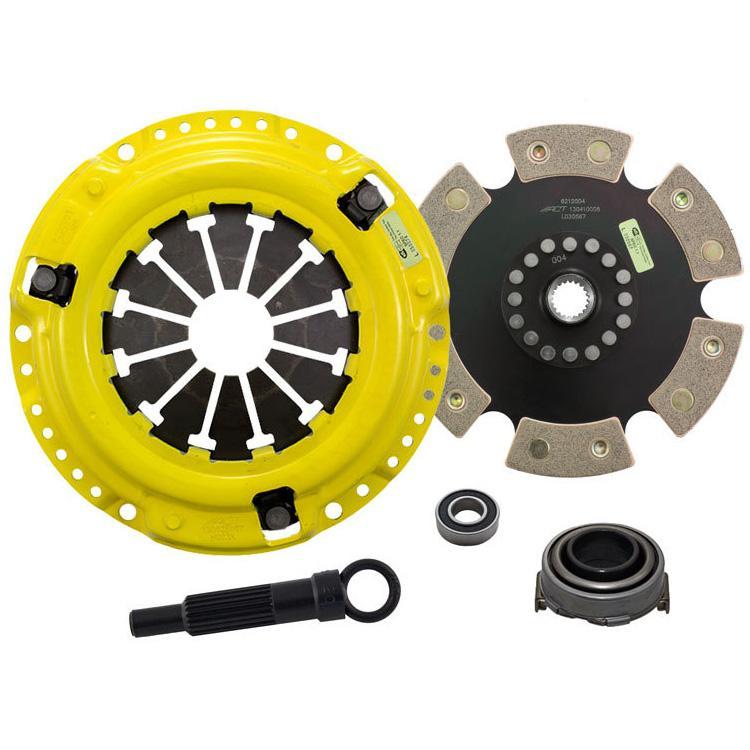

What's In The Box?

  • 1 - Xtreme Pressure Plate
  • 1 - Rigid 6-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
View full details
