• ACT Extreme Race Sprung 6 Pad Clutch Kit | Honda Civic (92-05) / Del Sol (93-97) / Acura EL (97-05) (HC5-XTG6)
1 1

ACT HC5-XTG6 Extreme Race 6 Pad Clutch Kit | Honda Civic/Del Sol/Acura EL (92-05) (HC5-XTG6)

ACT HC5-XTG6 Extreme Race 6 Pad Clutch Kit | Honda Civic/Del Sol/Acura EL (92-05) (HC5-XTG6)

HC5-XTG6

In stock

$583.00 USD
$720.00 USD $583.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT HC5-XTG6 Extreme Race 6 Pad Clutch Kit is a high-performance upgrade designed for Honda Civic, Del Sol, and Acura EL models from 1992 to 2005. This kit combines ACT's Xtreme pressure plate with a ceramic 6-pad sprung race disc, engineered to deliver exceptional holding capacity and durability under demanding conditions. The Xtreme pressure plate features an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life, making it ideal for racing and spirited driving. All components undergo a four-stage heat-treating process to ensure maximum performance and heat resistance. Precision cover stampings enhance rigidity and consistency, providing reliable engagement and smooth operation even during aggressive use.

Designed for vehicles from 1992 to 2005, including Honda Civic, Del Sol, and Acura EL models, this clutch kit is a direct replacement for stock units and suitable for high-performance applications. It is intended for track use, racing, or aggressive street driving, where increased clamping force and durability are essential. The kit includes the pressure plate and ceramic race disc, offering a bolt-on installation that maximizes performance without extensive modifications. Compatible with stock flywheels and hydraulics, this clutch kit provides a reliable upgrade for drivers seeking improved grip and longevity in demanding driving scenarios.

Overview

92-05 Honda Civic / 93-97 Del Sol & 97-05 Acura EL Xtreme Race Clutch Kit by ACT

This kit features ACT's Xtreme pressure plate paired with their ceramic 6-pad sprung race disc.

ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Feel: Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for high horsepower street or race use
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

  • Torque Capacity (ft/lbs): 380 ft/lbs
  • Torque Capacity (% Over OE): 133%

Applications

  • 1992 - 2005 Honda Civic
  • 1992 - 1998 Honda Civic Si
  • 1993 - 1997 Honda Civic Del Sol
  • 1997 - 2005 Acura EL

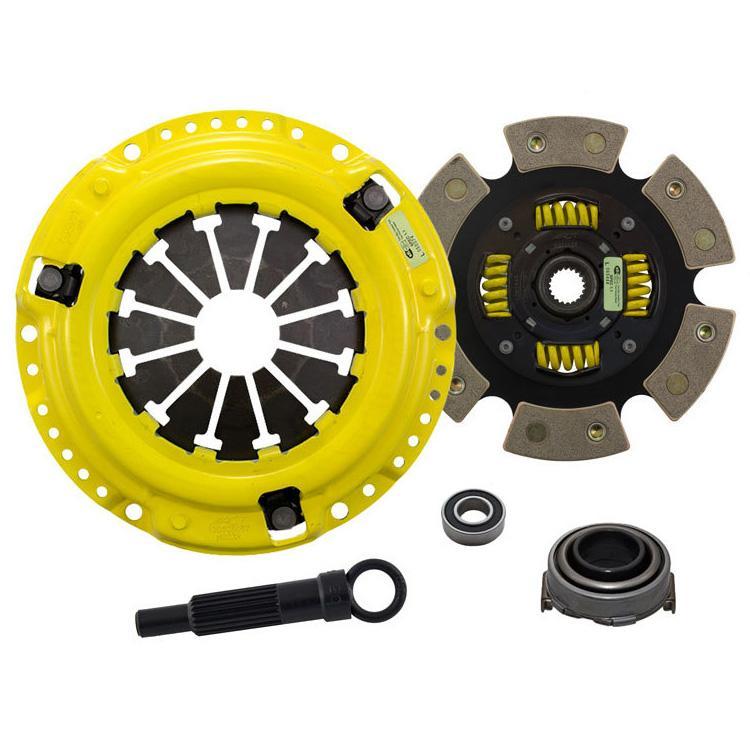

What's In The Box?

  • 1 - Xtreme Pressure Plate
  • 1 - Sprung 6-Pad Race Disc
  • 1 - Release Bearing
  • 1 - Pilot Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
