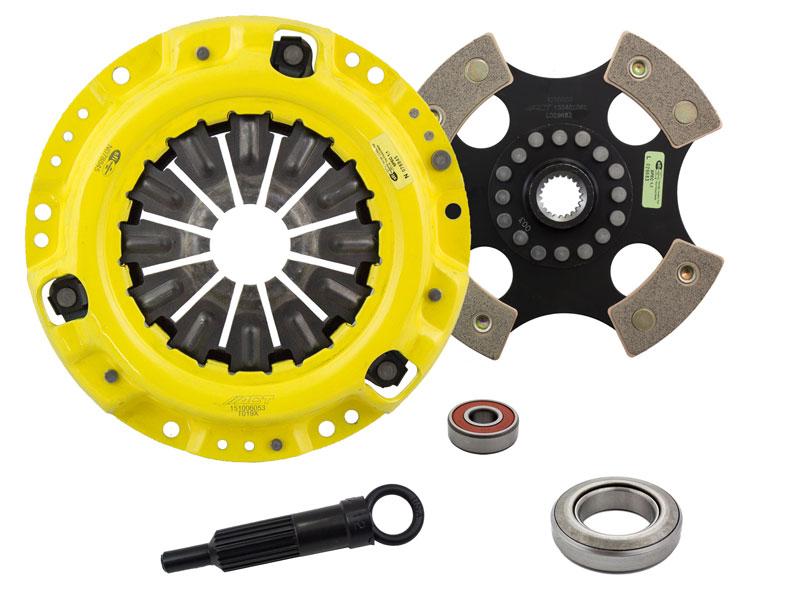

ACT XT/Race Rigid 4 Pad Clutch Kit | Toyota Corona (69-70) (TK1-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Toyota Corona (69-70) (TK1-XTR4)

TK1-XTR4

Out of stock

$501.00 USD
$619.00 USD $501.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for the Toyota Corona (1969-1970) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings enhance rigidity and stability during operation. The 4-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance for aggressive driving and racing applications. Overall, this clutch kit delivers superior engagement, increased holding capacity, and long-lasting reliability for serious enthusiasts.

Designed for 1969–1970 Toyota Corona models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for street and track use, offering enhanced performance for high-stress driving scenarios. The kit is a bolt-on installation, requiring no modifications for proper fitment. It includes all necessary components for a complete clutch replacement, ensuring optimal compatibility and ease of installation. This clutch kit is ideal for drivers seeking improved power transfer, better pedal feel, and increased durability in demanding driving environments.

Overview

ACT XT/Race Rigid 4 Pad Kit

TK1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1969-1970 Toyota Corona

What's In The Box?

  • Clutch Friction Disc (4200003)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB010)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
